This product has been discontinued.

View the Emerson HART Communicator 475

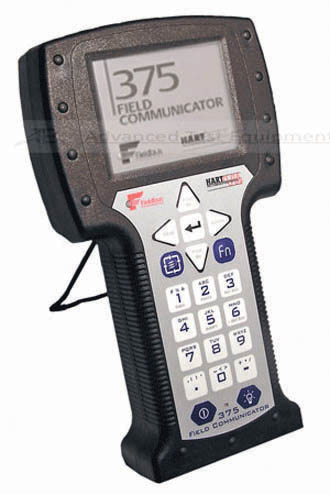

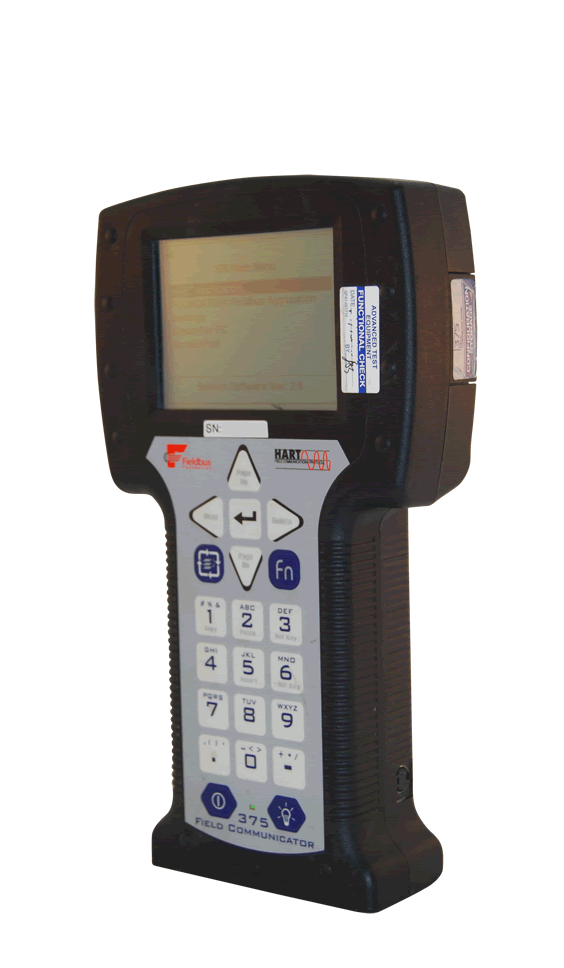

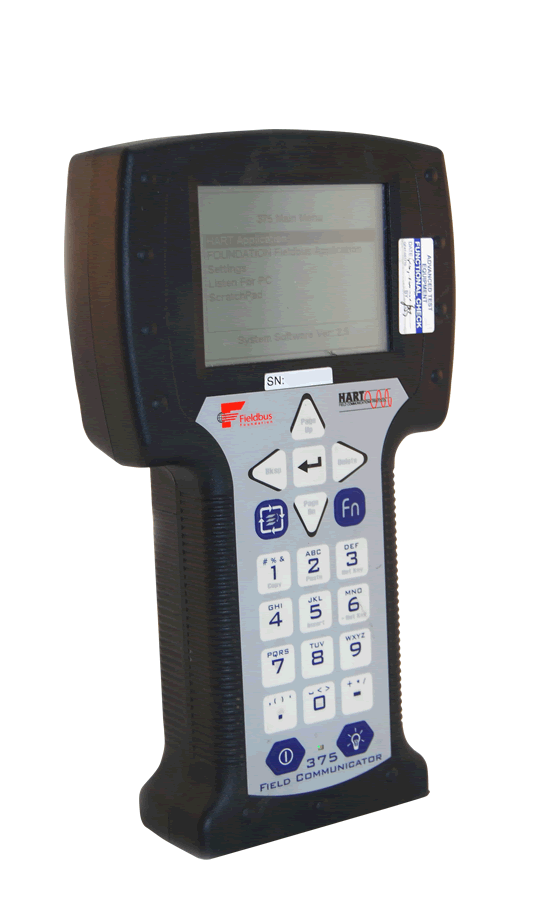

The Rosemount HART 375 Field Communicator is built on over ten years of experience with the 275 HART Communicator. It is a universal, user upgradeable, intrinsically safe, rugged and reliable portable communicator that will support all your fieldbus devices.

The HART 375 Field Communicator runs on Windows CE, a robust, real-time, operating system. The display uses transflective technology, making it easy to read in both bright sunlight and in normal lighting. It also includes a multi-level backlight, allowing the display to be viewed in those areas of your plant with dim light. The touch sensitive display and large physical navigation buttons provide for efficient use both on the bench and in the field.

Processor and Memory
Microprocessor	80 MHz Hitachi® SH3
Memory Internal Flash	32 MB
System Card	128 MB or higher secure digital card
RAM	32 MB
Expansion Module	32 MB or higher secure digital card
Connection
Battery Charger	Mini DIN 4-pin jack
HART and Fieldbus	Three 4mm banana plugs (one common to HART and Foundation fieldbus)
IrDAPort	IrDA (Infrared Data Access) port supporting up to 115 Kbps
	±15 degrees recommended maximum angle from center line
	Approximately 12 (30 cm)recommended maximum distance
