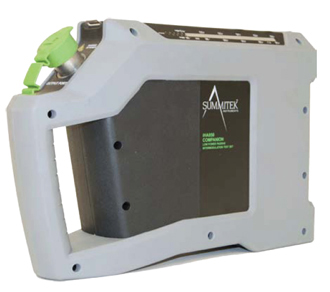

Kaelus (Summitek) IHA-1900A
Request Quote Print Page
Datasheet
Companion PIM Analyzer, 1900MHz, 2W

Kaelus (Summitek) IHA-1900A Features
  • Small, light weight
  • Battery operated
  • Rugged construction
  • One button push-to-test
  • LED bar display indicates PIM level
Kaelus (Summitek) IHA-1900A Specs
Description PCS1900
TX Frequency 1 1990.0MHz
TX FREQUENCY 2 1930.0MHz
RX FREQUENCY (PIM) 1870.0MHz
System
Measurement method Reverse (reflected) PIM, 3rd order
Residual PIM < -130dBm/-163dBc max
User interface ports 1x RF output (7-16 DIN female)
Display 2x LED bar displays indicate PIM level, battery level, display mode and alarms
Transmitter
Frequency accuracy ± 100ppm typ.
Power per tone (fixed) 2x 2W (+33dBm)
Power accuracy (per tone) &plusm; 1dB (max)
Receiver
Measurement noise floor < -134dBm
Measurement range -80dBm to -130dBm
Electrical
Battery 25.9 VDC, 2500mAH Li-ion battery pack (internal)
Battery life >2hr with RF power continuously on
Battery charger External charger, 29.4 VDC, 1.2 Amp
Mechanical
Analyzer dimensions 14 x 9 x 3.5in (350 x 230 x 90mm)
Case dimensions 22 x 14 x 9in (550 x 350 x 230mm)
Analyzer weight 11lbs (5kg)
Analyzer + case weight 25lbs (11kg)
Environmental
Operating temperature range 0°C to +45°C
Storage temperature range -10°C to +60°C
Ingress protection (IP) IP54
Relative humidity 5% to 95% RH non-condensing
