Keysight 339A Distortion Measurement Set, 100 kHz

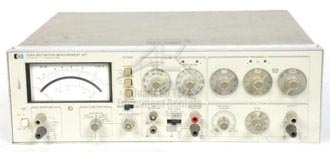

HP/Agilent 339A Distortion Measurement Set
Enlarge Image
Keysight 339A
Request Quote Print Page
Manual Datasheet

Ultra low distortion measuring system complete with total harmonic distortion (THD) analyzer, true rms voltmeter, and sinewave oscillator.  THD measurements over the 10 Hz to 110 kHz frequency band, including harmonics to 330 kHz.  Also features built-in tracking oscillator.



Distortion Measurements:

  • fundamental frequency range is 10 Hz to 110 kHz with 2 digit resolution
  • measurement range is 100% to 0.01%, (0 dB to -80 dB)
  • Keysight 339A Oscillator:
  • Frequency range is 10 Hz to 100 kHz with 2 digit resolution.  Output level is variable from 4 V rms to 1 mV rms.
  • Oscillator distortion ( >600 ohm load, <3 Vrms)



Specifications:

10 Hz to 20 kHz < -93 dB (0.0022%) THD
20 kHz to 30 kHz < -85 dB (0.0056%) THD
30 kHz to 50 kHz < -80 dB (0.01%) THD
50 kHz to 80 kHz < -70 dB (0.032%) THD
80 kHz to 110 kHz < -65 dB (0.056%) THD
