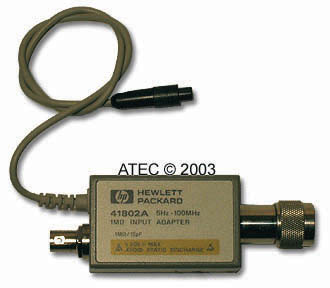

Keysight 41802A Input Adapter

41802A Input Adapter
Enlarge Image
Request Quote Print Page

For the E5100A Network Analyzer


Features:

  • Frequency Range: 5 Hz to 100 MHz
  • Accuracy: 0 dB ± 2 dB
  • Flatness: ± 2.8 dB
  • Damage Level: >2 Vrms, >50 Vdc
  • Power:
    • +15 V. 45 mA nominal
    • -12.6 V. 40 mA nominal
  • 1 dB Gain Compression: 0.32 Vrms at 1 MHz
  • Input Resistance: 1 MW
  • Input Capacitance: 12 pF
