Keysight 6653A 500 Watt, DC Power Supply 35V, 15A

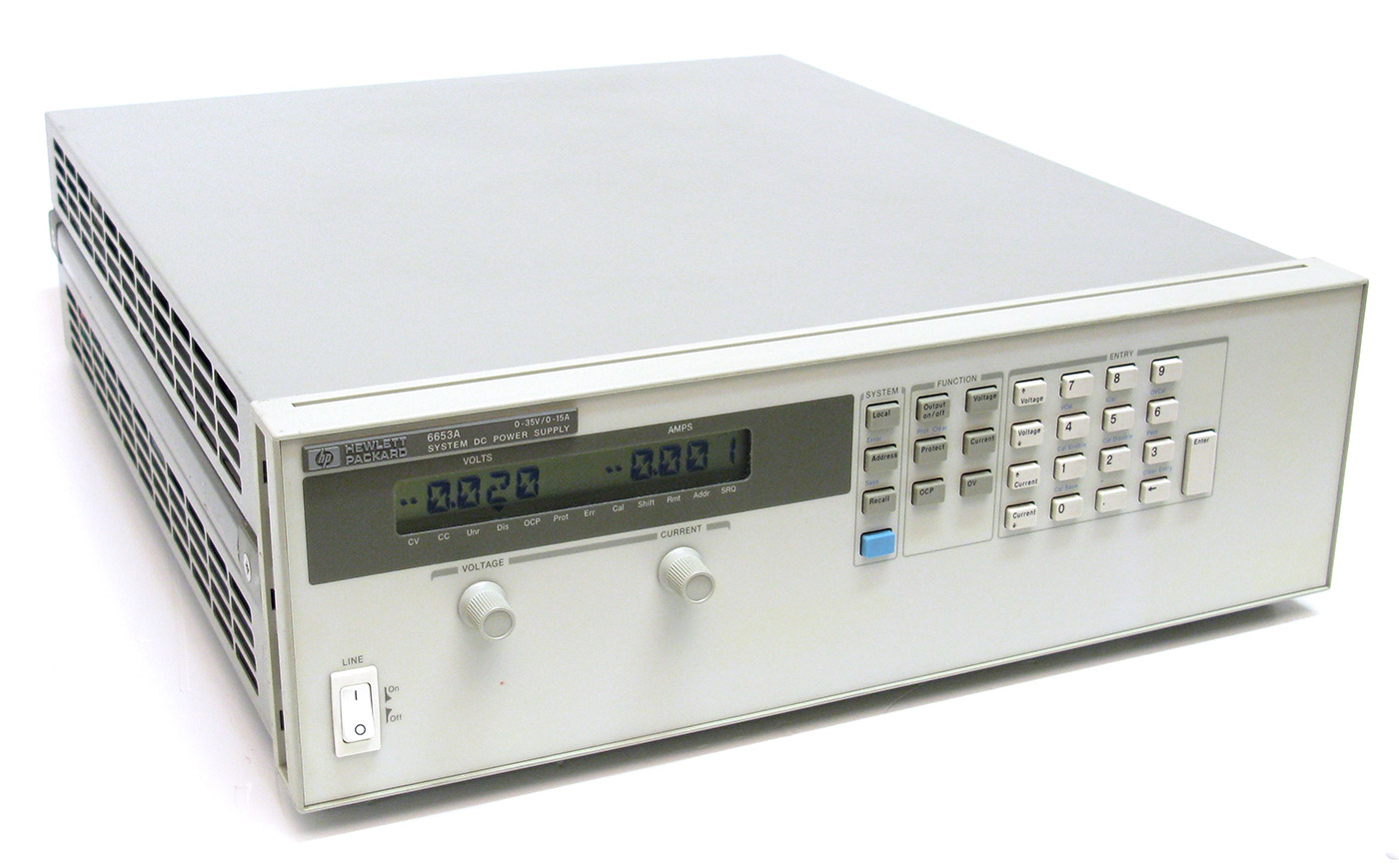

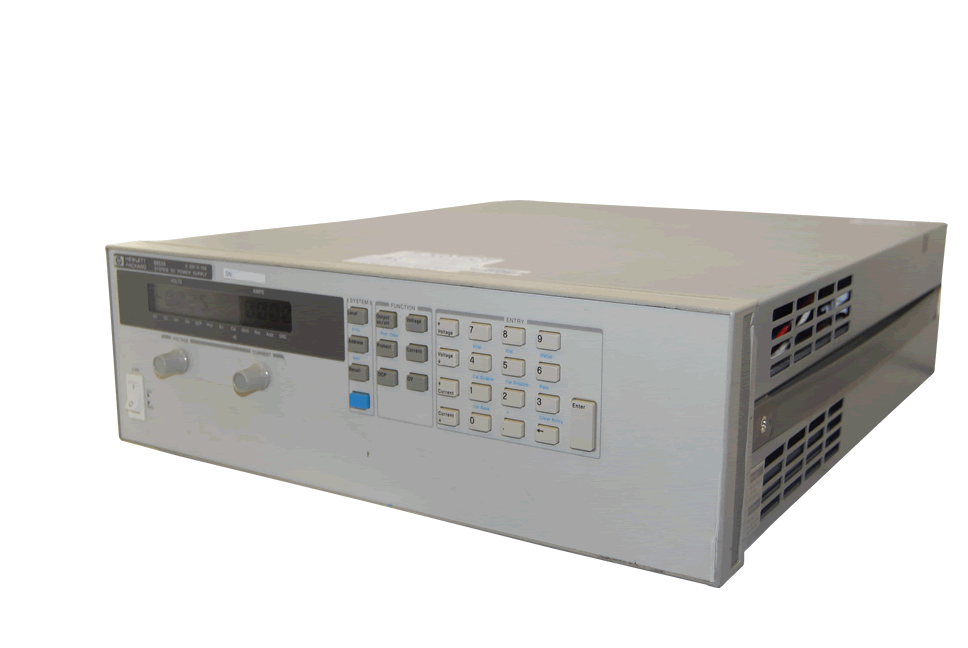

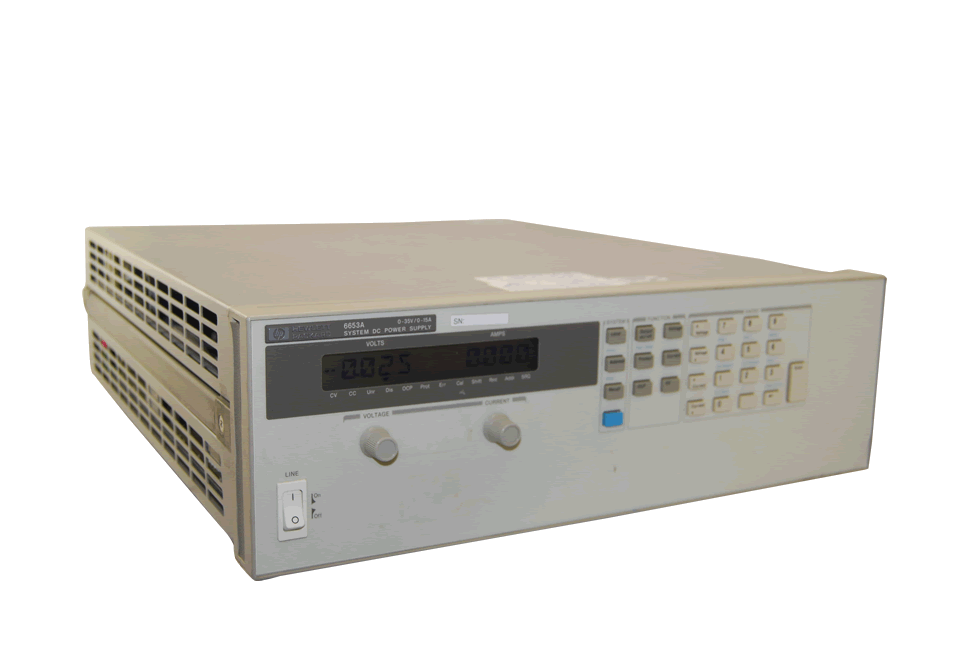

HP/Agilent 6653A 500 Watt System Power Supply, 35V, 15A
Enlarge Image
HP/Agilent 6653A 500 Watt System Power Supply, 35V, 15A HP/Agilent 6653A 500 Watt System Power Supply, 35V, 15A
Keysight 6653A
Request Quote Print Page
Datasheet
Keysight 6653A single output, 500W GPIB 665x series provide fast, low-noise outputs; analog control of output voltage and current; and fan-speed control to minimize acoustic noise.

Keysight 6653A Features
  • Output Ratings
    • Output voltage:0 to 35 V
    • Output current (40°C): 0 to 15 A
    • Maximum current (50°C/55°C): 13.5 A/12.8 A
  • Programming Accuracy at 25°C ±5°C
    • Voltage 0.06% + 15 mV
    • Current 0.15% + 13 mA
  • Ripple & Noise from 20 Hz to 20 MHz
    • Voltage rms: 400 μV
    • Peak-to-Peak: 4 mV
    • Current rms: 5 mA
Keysight 6653A Specs
Output ratings
Output Voltage 0 to 35 V
Output current (40°C) 0 to 35 V
Maximum current (50°C/55°C) 13.5 A/12.8 A
Programming accuracy
Voltage 15 mV
Current 13 mA
Ripple and noise
Voltage rms 400 μV
peak-peak 4 mV
Current rms 5 mA
Readback accuracy
Voltage 25 mV
+Current 15 mA
-Current 24 mA
Load Regulations
Voltage 3 mV
Current 0.5 mA
Line Regulation
Voltage 1 mV
Current 0.75 mA
