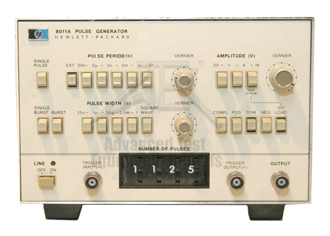

Keysight 8011A Pulse Generator, 0.1Hz - 20MHz

HP Agilent 8011A Pulse Generator, 0.1Hz - 20MHz
Enlarge Image
Keysight 8011A
Request Quote Print Page
Manual

Features:

  • Dual outputs, +10V and -10V
  • TTL output
  • Gating, square wave, double pulse modes
  • Repetition rate 0.1 Hz to 20 MHz
  • Positive/negative/symmetrical output
  • Normal/complement switch
  • Transition times: < 10 ns fixed
  • Pulse width: 25 ns to 100 ms in four ranges.  Vernier provides continuous adjustment within each range
  • Maximum output: 8 V.  With internal 50 ohms and external Hi-Z or internal Hi-Z/external 50 ohms, then 16 V max
  • Repetition Rate and Trigger: 0.1 Hz to 20 MHz in 5 ranges.  Vernier provides continuous adjustment within each range.
  • Power: 100/120/220/240 V rms; + 5%, -10%, 48 Hz to 440 Hz, 70 VA max
  • Weight: 9 lb
  • Dimensions: 5" H x 7.9" W x 11" D
