HP Agilent 8082A Pulse Generator, 250 MHz

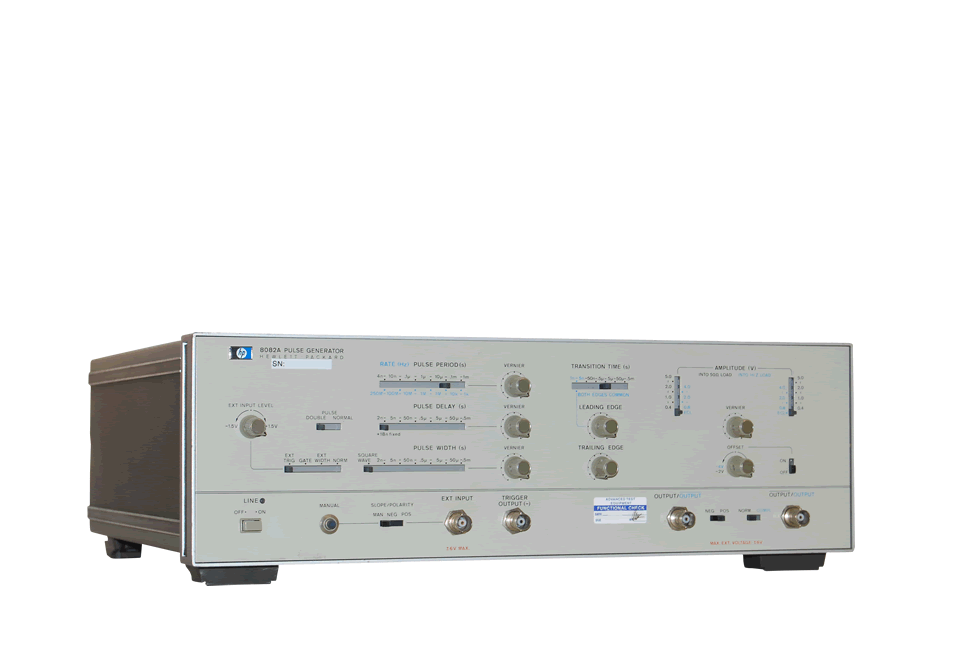

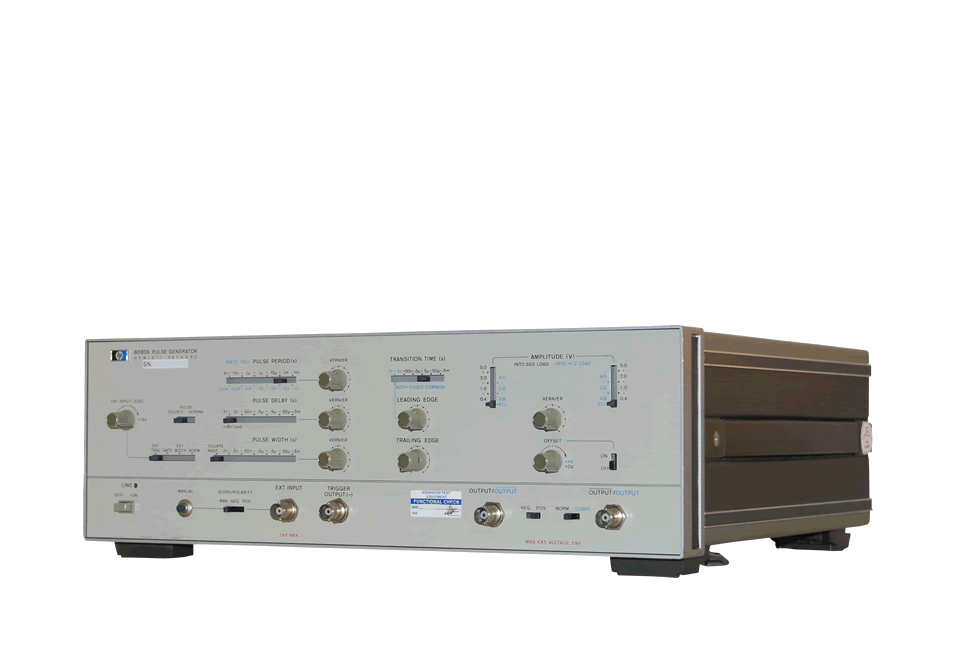

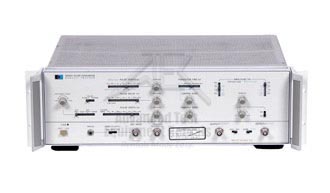

HP/Agilent 8082A Fast Pulse Generator
Enlarge Image
HP/Agilent 8082A Fast Pulse Generator HP/Agilent 8082A Fast Pulse Generator HP/Agilent 8082A Fast Pulse Generator
Request Quote Print Page
Datasheet

The HP / Agilent 8082A is a fast pulse generator with all pulse parameters variable.  With repetition rates to 250 MHz, transition times down to 1 ns, and amplitudes to 5 V.



Features:

  • < 1 ns variable transition times
  • Ultra-clean 50 ohms source
  • Switch-selectable ECL levels
  • Dual ± 5 V outputs
  • Output: maximum amplitude is 5 V from 50 ohms into 50 ohms.  Maximum output voltage is ± 5 V (amplitude + offset)
