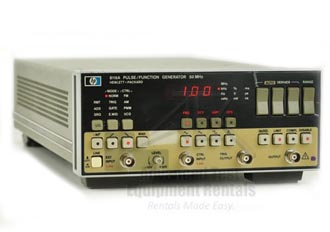

HP/Agilent 8116A Pulse/Function Generator
Enlarge Image
Keysight 8116A
Request Quote Print Page
Manual Supplemental Document
1 MHz - 50 MHz Programmable Pulse/Function Generator

Option 001 provides the Hp 8116A with increased capabilities including logarithnmic sweep, counted burst, hold input for sine, triangle, and squarewave.
Keysight 8116A Features
  • Sine, triangle, ramp, square, pulse, haverfunctions, and dc
  • 1 mHz to 50 MHz, 32 Vpp (16 Vpp into 50 ohms) for all waveforms
  • Variable (10 ns min) pulse width, 6 ns transitions
  • Modulation (FM/AM/Pulse width / VCO)
  • Standard HPIB Interface
