Keysight 8133A Pulse Generator, 3 GHz

HP/Agilent 8133A Pulse Generator
Enlarge Image

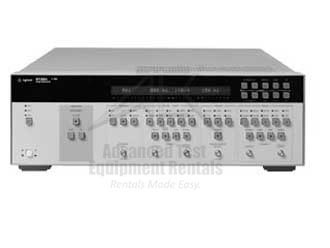

Keysight 8133A
Request Quote Print Page
Datasheet Brochure

The Agilent 8133A 3 GHz Pulse Generator provides pulses with programmable period from 333 ps to 30 ns, full 3 GHz pulse capability on all channels. The pulse width can be programmed too, along with a delay or the interchannel delay. At these frequency ranges the transition time performance becomes critical; less than 100 ps is specified, less than 60 ps is typical, so excellent signal integrity is assured. And last but not least, a typical jitter of 1 ps creates precise and accurate timing conditions.



Features:

  • 33 MHz to 3 GHz Frequency
  • Single output channel
  • Low jitter
  • Fast rise times (20%-80%) < 60 ps
  • Delay modulation (jitter emulation)
  • Variable cross-over point (eye deformation) LVDS applications can be addressed with output levels from 50 mV to 2 V PRBS from 25-1 to 231-1
  • All inputs and outputs are SMA (f) 3.5 mm connectors
  • <100 ps transition times
  • <5 ps pulse jitter
  • ±0.5% ps Width Accuracy
  • ±100 ps Width Accuracy
  • ±150 ps Delay Accuracy
  • 1 or 2 Output Channels
  • 2 23-1 PRBS Generation
  • SCPI Programming Commands
