Keysight 8161A Dual Channel Option Pulse Generator

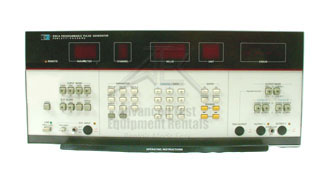

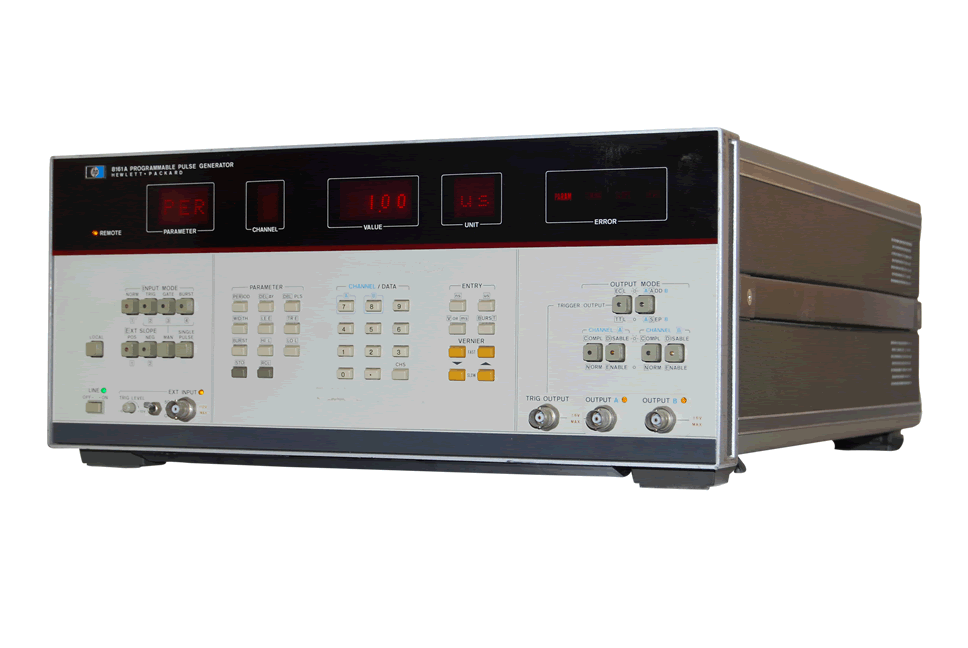

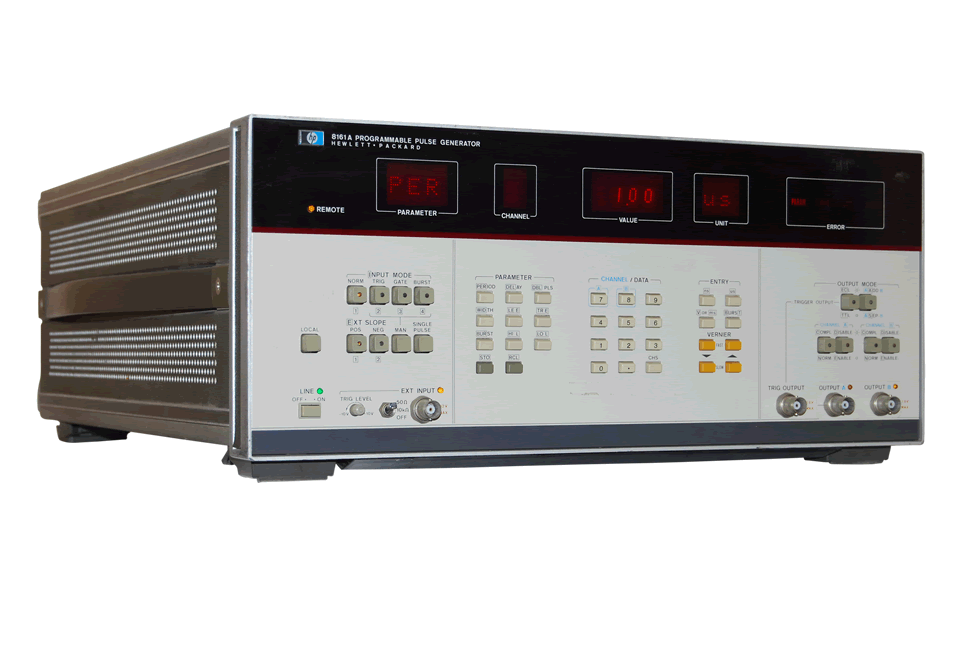

HP/Agilent 8161A Dual Channel option Pulse Generator
Enlarge Image
HP/Agilent 8161A Dual Channel option Pulse Generator HP/Agilent 8161A Dual Channel option Pulse Generator HP/Agilent 8161A Dual Channel option Pulse Generator
Keysight 8161A
Request Quote Print Page
Manual

Outputs Option 020 = Second Channel with all parameters variable.



General Specifications:

Recalibration Period 1 year
Warm-up time 30 min to meet all specifications
Repeatability Factor 2 better than specified accuracy
Environmental
Storage temperature -40° to 75°
Operating temperature 0° to 50°
Humidity 95% R.H., 0°C to 40°C
Power 115/230 V rms + 10%, 22%; 48 66Hz; 675 VA max
Dimensions 178 mm high, 426 mm wide, 500 mm deep (7 x 16.8 x 19.7 in.)
Delay Min/Max HP-IB - 990 ms
Number of Channels & Other 0.0 ns - 1 Ch
Output V/Accuracy Freq/Accu. 1 %
Output Voltage 5 V
Triggering Modes Gate/Burst
