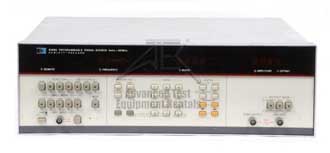

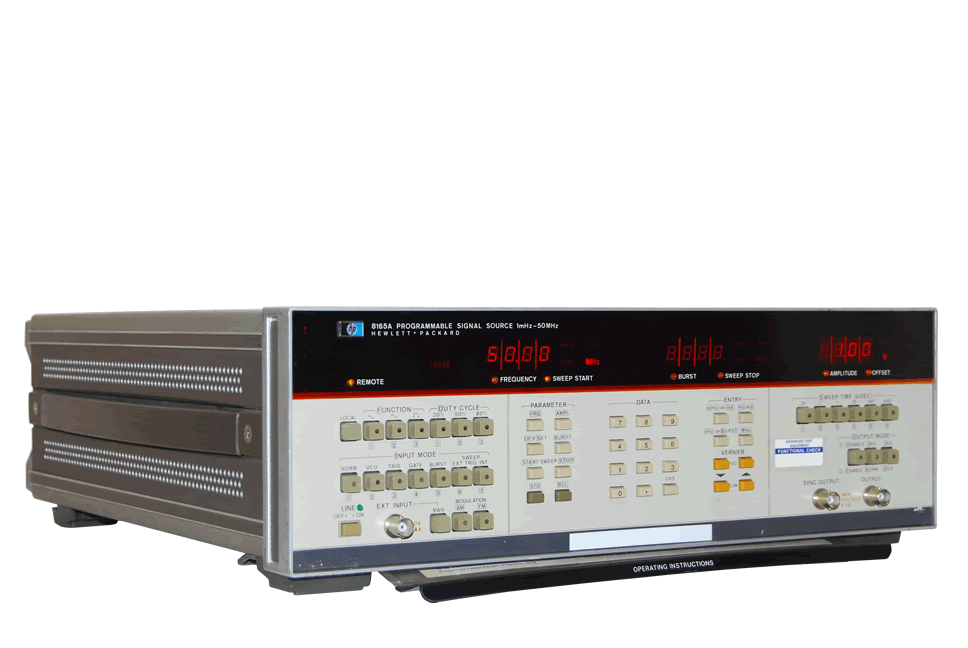

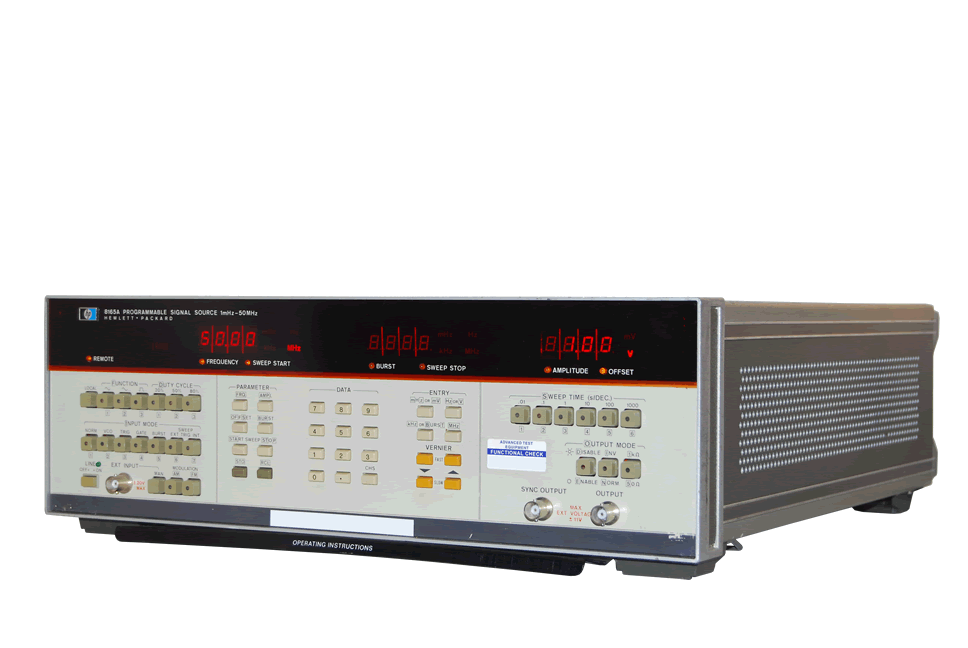

Keysight 8165A Pulse Function Generator

HP Agilent 8165A Pulse Function Generator
Enlarge Image
HP Agilent 8165A Pulse Function Generator HP Agilent 8165A Pulse Function Generator HP Agilent 8165A Pulse Function Generator
Keysight 8165A
Request Quote Print Page
Manual



  • Sine, square, and triangle (50% duty cycle): 1.000 mHz to 50.00 MHz
  • Pulses and ramps to 20 MHz
  • Source Impedance: selectable 50 ohm ±1% or 1 kohm ±10%
  • Amplitude: 10.0 mVpp to 10.0 Vpp (50 ohm into 50 ohm). 2.00 Vpp to 20.0 Vpp (1 kohm into 50 ohm)
  • Trigger, gate and counted burst
  • Synthesizer stability, precision amplitude
  • Storage of operating parameters
