Keysight E5071C ENA Vector Network Analyzer, 9 kHz - 20 GHz

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery

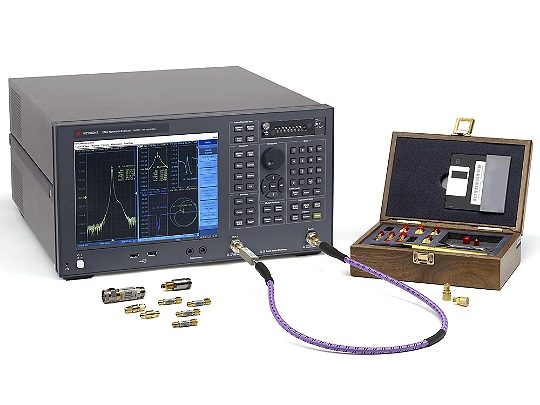

Keysight E5071C ENA Vector Network Analyzer Larger
Keysight E5071C ENA Vector Network Analyzer, 9 kHz - 20 GHz
Categories
  • Vector Network Analyzers (VNA)
    Vector Network Analyzers (VNA)
Documents
  • Datasheet
  • Brochure
  • Print
  • Email

The Keysight E5071C ENA Vector Network Analyzer is a versatile RF network analysis instrument with a wide frequency range of 9 kHz to 9 kHz to 4.5 / 6.5 / 8.5 GHz, depending on the model option. The Keysight E5071C ENA Analyzers, formerly known as Agilent E5071C ENA Analyzers, are designed to perform signal analysis on wireless communication, automotive, semiconductor, and medical industry equipment, used for both manufacturing and R&D applications. The Keysight E5071C improves accuracy, yield, and margins with its wide dynamic range of 123 dB and excellent temperature stability of 0.005 dB/°C. The Keysight E5071C ENA Vector Network Analyzer features a fast measurement speed, providing 9 msec for 401 points with error correction. The device is upgradable and there are different model options available for time domain analysis, offering 2- or 4-port test set configurations with varying frequency ranges and system customizations.

  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • Wide frequency coverage: 9 kHz to 20 GHz
  • Low trace noise: <0.004 dB rms at 70 kHz IFBW
  • Wide dynamic range: >123 dB
  • Fast measurement speed: 9 msec for 401 points with error correction
  • High temperature stability: 0.005 dB/°C
  • 2 or 4 ports, plus flexible multiport configuration of up to 22 ports with E5092A
  • Built-in VBA programming environment enables high throughput and UI customization
  • Powerful analysis and error correction
  • Advanced characterization of mixers (such as the vector mixer calibration) and amplifiers with frequency offset mode (optional)
  • Advanced characterization of high-speed serial interconnects with enhanced time domain analysis (optional)
  • Upgrade are available for all E5071C options at any time
Specifications
IF bandwidth range 10 Hz - 1.5 MHz
Frequency 9 kHz to 4.5 / 6.5 / 8.5 GHz
100 kHz to 4.5 / 6.5 / 8.5 GHz (with bias tees)
300 kHz to 14 / 20 GHz (with bias tees)
Input frequency 10 MHz ±10 ppm
Output frequency 10 MHz ±7 ppm
Output level 0 dBm ±3 dB into 50 Ω
Output impedance 50 Ω
Voltage 90-264 VAC (Vpeak > 120 V)
VA 350 VA max
Operating temperature +5°C to +40°C
Weight 18.8 kg - 22.4 kg (41.4 - 49.3 lb.)
Vibration 0.5 G maximum, 5 Hz to 500 Hz
Humidity 20% to 90% at wet bulb temperature < +40°C
Altitude 0 to 4572 m (0 to 15,000 feet)
Applications
Options
E5071C-280 2-port Test Set, 9 kHz to 8.5 GHz without Bias Tees
E5071C-285 2-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
E5071C-480 4-port Test Set, 9 kHz to 8.5 GHz without Bias Tees
E5071C-485 4-port Test Set, 100 kHz to 8.5 GHz with Bias Tees
E5071C-240 2-port Test Set, 9 kHz to 4.5 GHz without Bias Tees
E5071C-245 2-port Test Set, 100 kHz to 4.5 GHz with Bias Tees
E5071C-2K5 2-port Test Set, 300 kHz to 20 GHz with Bias Tees
E5071C-440 4-port Test Set, 9 kHz to 4.5 GHz without Bias Tees
E5071C-4K5 4-port Test Set, 300 kHz to 20 GHz with Bias Tees
E5071C-445 4-port Test Set, 100 kHz to 4.5 GHz with Bias Tees
E5071C-4D5 4-port Test Set, 300 kHz to 14 GHz with Bias Tees
E5071C-465 4-port Test Set, 100 kHz to 6.5 GHz with Bias Tees
E5071C-460 4-port Test Set, 9 kHz to 6.5 GHz without Bias Tees
E5071C-2D5 2-port Test Set, 300 kHz to 14 GHz with Bias Tees
E5071C-265 2-port Test Set, 100 kHz to 6.5 GHz with Bias Tees
E5071C-260 2-port Test Set, 9 kHz to 6.5 GHz without Bias Tees
Additional Software Options
E5071C-010
  • Time Domain Analysis Software
    • Fully error-corrected time domain reflection or transmission response
    • Up to 20,001 point measurement with low-pass or band-pass mode selection
    • Gating available to remove unwanted responses
E5071C-790
  • Measurement Wizard Assistant (MWA) Software
    • Available for the E5071C and the E5091A/E5092A configurable multiport test set
    • For simplifying multiport device measurements
    • Easy and fast measurement setup with step-by-step setup wizard
    • Measurement connectivity matrix with the multiport test set
    • Minimized operating time with calibration wizard
    • Automatic text procedure with go/not go limit test
E5071C-008
  • Frequency Offset Mode Software
    • Transmission response measurement of devices such as mixers and converters
    • Frequency-offset sweep
    • Scalar Mixer Calibration (SMC) for accurate conversion loss/gain measurements
    • Vector Mixer Calibration (VMC) for phase and group delay measurements
E5071C-TDR
  • Enhanced Time Domain Analysis Software
    • Real time measurements simultaneously in time domain (TDR/TDT) and frequency domain (S-parameters)
    • Eye diagram tests without external bit pattern generator
    • Stressed eye diagram analysis
    • Impedance analysis
    • ESD Robustness
Timebase Stability
E5071C-UNQ Standard stability timebase
E5071C-1E5 High stability timebase
Hard Disk Drive Options
E5071C-017 Removable Data Storage
E5071C-019 Standard Data Storage

Accessories
Standards
Media
Customize Quote
Instant Quote

RELATED PRODUCTS

Keysight E5061B
Keysight E5061B ENA Vector Network Analyzer
Keysight E5063A ENA Series Network Analyzer, 100 kHz - 18 GHz
Keysight E5063A ENA Series Network Analyzer | 100 kHz -18 GHz
Rohde & Schwarz ZNB8 Vector Network Analyzer
Rohde & Schwarz ZNB8 Vector Network Analyzer
Tektronix TTR500 Series Vector Network Analyzer (VNA)
Tektronix TTR500 Series Vector Network Analyzer (VNA)
Keysight E8364C PNA Network Analyzer, 10 MHz to 50 GHz
Keysight E8364C PNA Network Analyzer, 10 MHz to 50 GHz
Keysight E8361C PNA Microwave Network Analyzer
Keysight E8361C PNA Microwave Network Analyzer
Keysight E5080A ENA Vector Network Analyzer
Keysight E5080A ENA Vector Network Analyzer
Anritsu MS2038C
Anritsu MS2038C VNA Master & Spectrum Analyzer | 5 kHz to 20 GHz
Agilent N5230C PNA-L Microwave Network Analyzer
Keysight N5230C PNA-L Microwave Network Analyzer
N9951A
Keysight N9951A FieldFox Handheld Microwave Analyzer
Keysight 8722ES 40 GHz Vector Network Analyzer
Keysight 8722ES Vector Network Analyzer, 50 MHz - 40 GHz
Keysight 8753ES S-Parameter Network Analyzer 30 kHz - 3 GHz / 6 GHz
Keysight 8753ES S-Parameter Network Analyzer 30 kHz - 3 GHz / 6 GHz
Anritsu MS2024B VNA Master Vector Network Analyzer
Anritsu MS2024B VNA Master Vector Network Analyzer
Anritsu MS2026A Vector Network Analyzer
Anritsu MS2026A Vector Network Analyzer
Anritsu MS2034B VNA Master Vector Network Analyzer
Anritsu MS2034B VNA Master Vector Network Analyzer
Anritsu MS2035B VNA Master Vector Network Analyzer
Anritsu MS2035B VNA Master Vector Network Analyzer
Anritsu MS46322A ShockLine Economy Vector Network Analyzer
Anritsu MS46322A ShockLine Economy Vector Network Analyzer
Anritsu MS46322B Vector Network Analyzer
Anritsu MS46322B Vector Network Analyzer (VNA) | 1 MHz - 43.5 GHz
Anritsu MS4644B VectorStar VNA
Anritsu MS4644B VectorStar VNA | 10 MHz - 40 GHz
Anritsu MS4647B VectorStar VNA
Anritsu MS4647B VectorStar VNA | 10 MHz - 70 GHz
Anritsu MS46522B ShockLine 2-Port Performance VNA
Anritsu MS46522B ShockLine 2-Port Performance VNA
Copper Mountain CobaltFX15 Vector Network Analyzer 50 GHz - 75 GHz
Copper Mountain CobaltFX15 Vector Network Analyzer 50 GHz - 75 GHz
Keysight 85093C RF Electronic Calibration (ECal) Module | 3.5mm
Keysight 85093C RF Electronic Calibration (ECal) Module | 3.5mm
Keysight 8753E RF Network Analyzer, 30 kHz - 3/6 GHz
Keysight 8753E RF Network Analyzer, 30 kHz - 3/6 GHz
Keysight E5071B ENA RF Network Analyzer 300 kHz to 8.5 GHz
Keysight E5071B ENA RF Network Analyzer 300 kHz to 8.5 GHz
  • Certified ISO 9001
  • A2LA
REP PORTAL Terms & Conditions About About ATEC Blog Media News FAQs Forms Careers

© 2023 Advanced Test Equipment Corp. All Rights Reserved.

Privacy Notice Terms of Use Site Map Linecards
This site uses cookies, as explained in our cookie policy.
