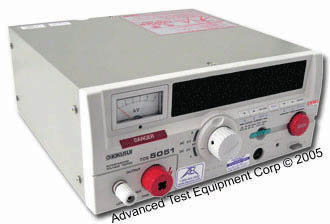

Kikusui TOS5051 AC/DC Hipot Tester

Kikusui TOS5051 AC/DC Hipot Tester
Enlarge Image
Kikusui TOS5051
Request Quote Print Page
Manual Datasheet



Features:

  • AC/DC output (0 to 5 kV)
  • Large color display
  • Digital voltmeter and ammeter
  • Digital time
  • Window comparator type employed for Pass/Fail judgment
  • Equipped with remote control function
  • Provided with zero turn-on switch


Specifications:

Test Voltage AC and DC
Applied Voltage 0 kV to 2.5 kV/0 kV to 5 kV
Maximum Rated Output AC: 500 VA/ 5kV, 100 mA
DC: 50W/5kV, 10 mA
Output Voltmeter
Scale Analog: 5 kV full scale, AC/DC
Full Scale Digital: 2.5 kV/5 kV full scale
Ammeter
Upper Cutoff Current Setting Range AC: 0.1 mA to 110 mA
DC: 0.1 to 11 mA
Lower Cutoff Current Setting Range AC: 0.1 mA to 110 mA
DC: 0.1 mA to 11 mA
Test Time Setting Range 0.5 to 999 (±10 ms) (timer-off function provided)
