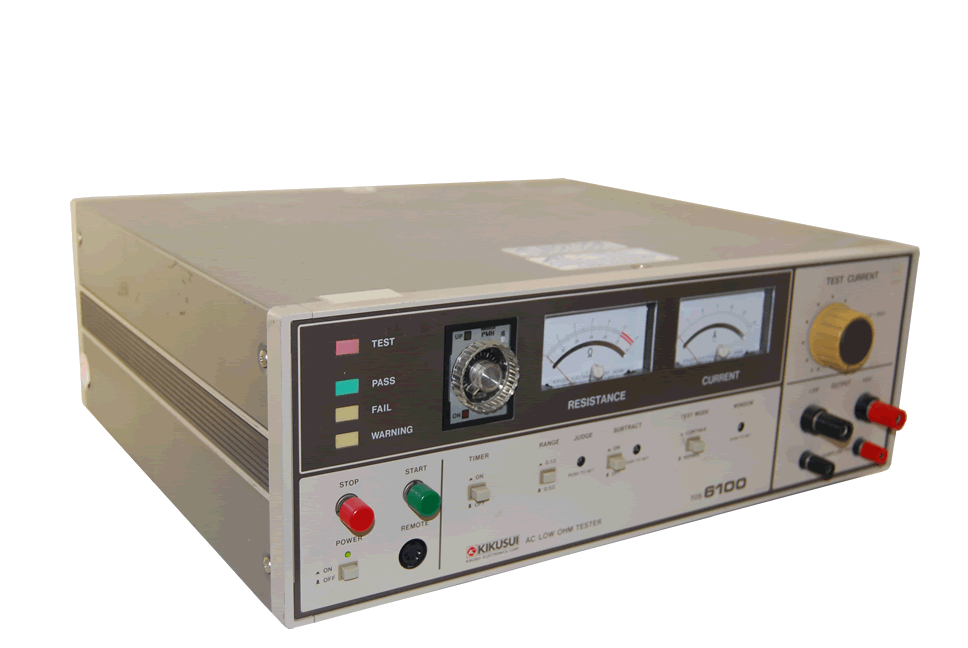

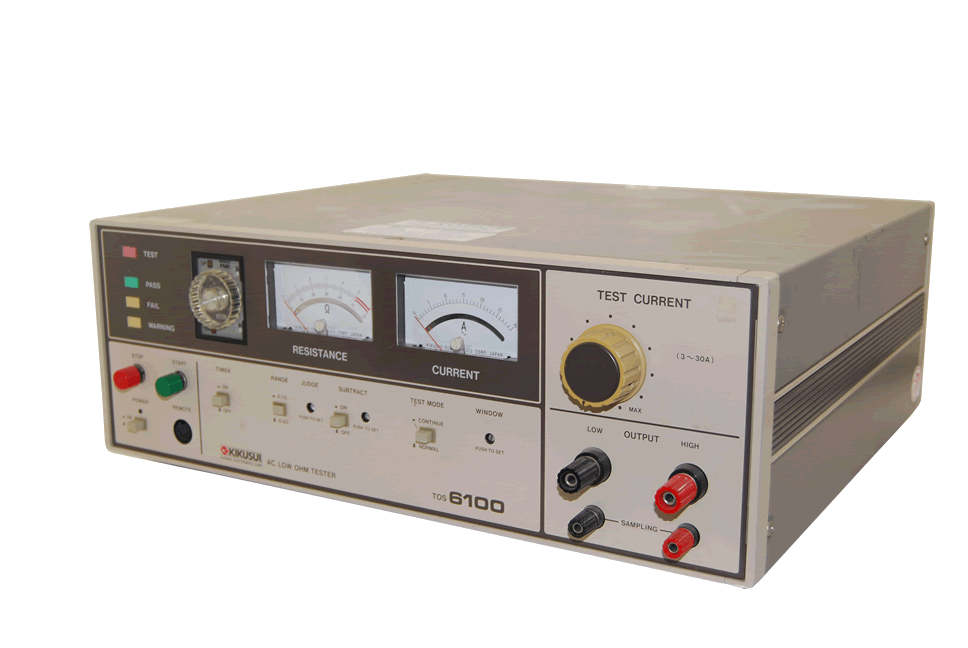

Kikusui TOS6100 Earth Continuity Tester

Kikusui TOS6100 Earth Continuity Tester
Enlarge Image
Kikusui TOS6100 Earth Continuity Tester Kikusui TOS6100 Earth Continuity Tester
Kikusui TOS6100
Request Quote Print Page
Manual Specifications
3 - 30A, Earth Continuity Tester

Kikusui TOS6100 Features
  • 0 to 0.12 ohms/0 to 0.6 ohms
  • Test current can be set to any desired value (3 to 30A)
  • Equipped with various signal output terminals
  • Equipped with PASS-FAIL judgement
  • Resistance Measurement Value: 0 to 0.12 ohms/0 to 0.6 ohms, 2 ranges
  • Test current output: 3 to 30A, AC
  • PASS-FAIL judgement: Judged FAIL when measure value is greater than reference value. Judged PASS if there are no abnormalities after the set amount of time has passed
  • Test Time: 0.5 sec to 10 min
  • Signal Output: TEST, PASS, FAIL, WARNING, READY, MONITOR
  • Dimension (mm): 430 W x 149 H x 370 D
  • Weight: approx. 16kg
