NetScout OPTIVIEW-GIG Integrated Network Analyzer

Larger

This product has been discontinued.

View the NetScout OptiView XG Network Analysis Tablet

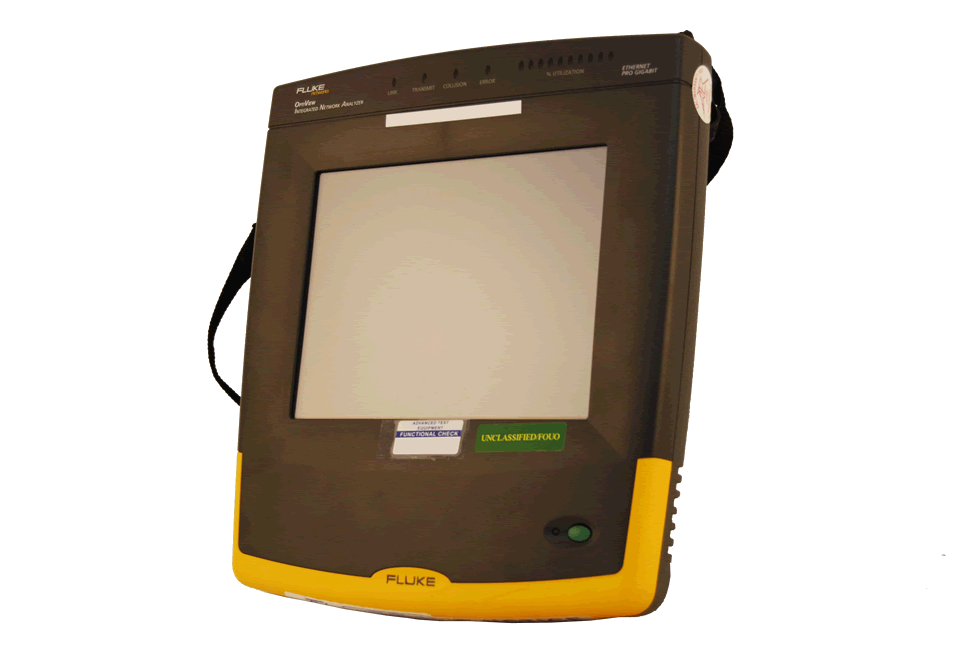

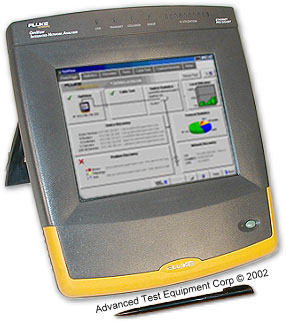

The NetScout OptiView-GIG Network Analyzer is a breakthrough in integrated portable and distributed monitoring and analysis hardware and software. It gives you quick, complete visibility into your entire Ethernet network – from portable devices to work-group analyzers to high performance gigabit line-rate link analyzers.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Complete network vision in seconds
Combines seven layer protocol analysis, active discovery, SNMP device analysis, RMON2 traffic analysis and physical layer testing into a mobile solution
Design and user interface equally effective whether the unit is carried as a portable device or placed semi-permanently on a network link
Web enabled remote analysis allows up to seven users to access a single unit simultaneously

Specifications

General Specifications
Weight	Without external battery 2.1 kilograms (4.6 lbs)
Weight	With external battery 2.8 kilograms (6.2 lbs)
Dimensions	26.0 x 23.4 x 6.4 centimeters (10.3 x 9.2 x 2.5 inches)
Display	LCD touch screen, 640 x 480 pixels, passive color panel, active area 157.42 mm x 118.06 mm, CCFT back-light and bezel, touch pad
LED indicators	16 (21 with external battery)
Power
Internal battery	Lithium Ion 10.8V DC (nominal), 2.2Ah
External battery	Lithium Ion 10.8V DC (nominal), 4.7Ah
External AC adapter / battery charger	AC input:	120V - 240V, 50/60Hz, 1.5A
External AC adapter / battery charger	DC output:	15V, 3.3A
Ports
Communication and accessory ports	2 USB, 1 multibus PCMCIA (PC Card type II), 1 DB-9 serial, 1 PS2 compatible key-board, 1 PS2 compatible mouse
Network analysis ports	RJ-45 10/100BASE-T Ethernet, Fiber 100BASE-FX (OptiView Pro, Pro Gigabit), fiber 1000BASE-X GBIC(OptiView Pro Gigabit)
Network Standards
LAN Interfaces	IEEE 10BASE-T, IEEE 100BASE-TX, IEEE 100BASE-F, IEEE 1000BASE-X
Standard SNMP MIBs Used	RFCs: 1213, 1231, 1239, 1285, 1493, 1512, 1513, 1643, 1757, 2021, 2108, 2115
Media
Cable Types	Unshielded Twisted Pair LAN cables (100 and 120 ohms UTP category 3, 4, 5, 5E, and 6 ISO/IEC Class C and D)
Cable Types	Foil-screened Twisted Pair cables (100 and 120 ohms ScTP category 3, 4, 5, and 6 ISO/IEC Class C and D)
Cable Length	Resolution 0.1m (1ft)
Characteristic Impedance	50 to 150 ohms, cables 3-5 m (10-16 ft.) ±(5 ohms +10%)
Characteristic Impedance	50 to 150 ohms, cables >5 m (16 ft.) ±(5 ohms +5%) Resolution: 1 ohms
Receive Level	100 to 5000mVp-p, ±5% Resolution: 1 ohms
Datalink Signal	500mVp-p to 4000mVp-p Resolution: 10mV
Measuring Terminated Cables	Able to analyze individual twisted-pairs of a cable that are terminated into most equipment vendors' Ethernet ports such as on a hub, switch or NIC. All cable tests other than wiremap and office locator ID are operational in the presence of datalink signal.
GBIC Identification	Identifies and operates with the following GBIC module types per SFF Document Number SFF-8053, Gigabit Interface Converter, Rev. 5.4: LX (1300nm), SX (850nm)
Wiremapper/Office Locator Compatibility	Detects combinations of shorts, opens, and connector miswires. Compatible with wire mapper/office locators (also called wire map adapter) labeled for Fluke Networks OptiView analyzer
Open, short or with wire map adapter	1 to 305m (3ft to 1000ft) ±[2% of reading + 0.3m (1ft)]
Terminated with (15% reflection)	1 to 153m (3ft to 500ft) ±[5% of reading + 0.3m (1ft)]
