Noiseken LSS-710B Lightning Surge Simulator

Noiseken LSS-710B Lightning Surge Simulator
Enlarge Image

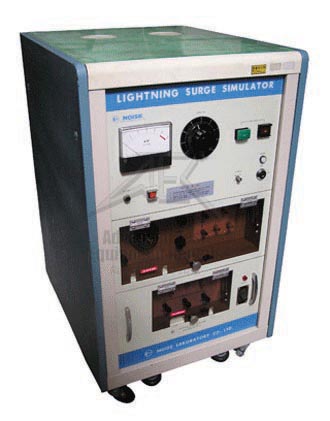

Noiseken LSS-710B
Request Quote Print Page



Features:

  • 1.2/50µsec voltage surge test conformable to JEC-210.212
  • Can easily be superimposed on the hot line and applied to dead line
  • Portable. Easily moved next to large equipment for performing tests
  • High voltage tests up to 10KV
  • Provides various waveforms upon request


Specifications:

Surge waveform 1.2/50 microseconds, duration of wavefront ±30%, duration of wavetail ±20%
Surge voltage 0 - 10 KV Max ±3%
Surge ouput impedance/td> 6 ohms ±10%
Surge repetition cycle Approx. 3 sec or longer by manual
Surge voltage superimposed on the power supply line to equipment under test 0 - 5 KV, continuously variable
Surge polarity positive and negative
Power supply capacity of equipment to be measured 100/200 VAC, single phase 10A
Power consumption 100 VAC, 50/60 Hz, 85VA Max
