Pacific Power DCR600-20 DC Power Supply 600 V, 20 A, 6 kW

Rent Pacific Power DCR600-20 DC Power Supply 600 V, 20 A, 6 kW
Enlarge Image
Request Quote Print Page
Datasheet

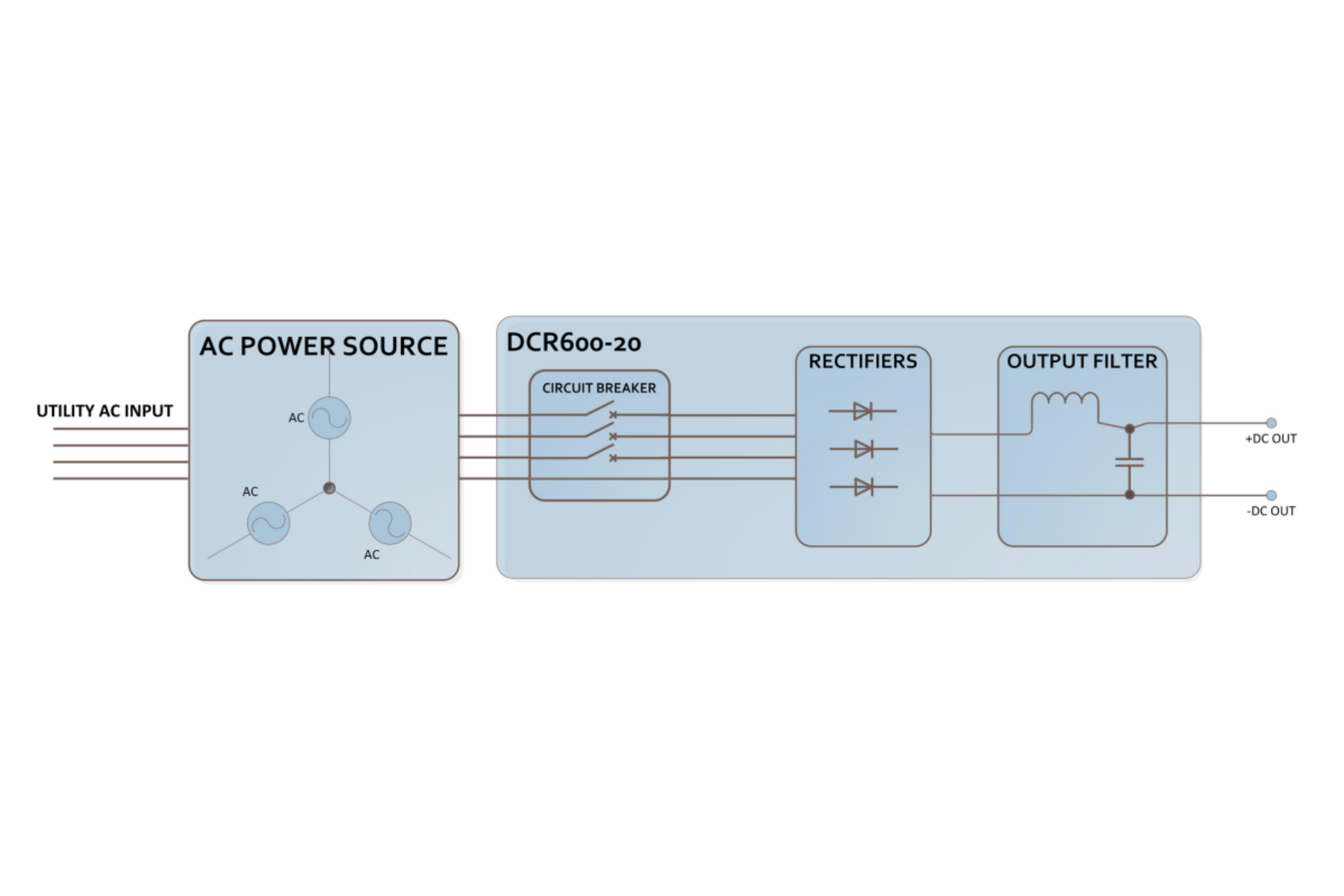

The Pacific Power DCR600-20 DC Power Supply 600 V, 20 A, 6 kW is a unique approach to generating programmable DC voltages to test DC powered equipment using a Pacific Power Source AMX Series AC Power Source such as the Pacific Power 360AMX. The DCR600-20 connects between the AC Power Source outputs terminals and the UUT and rectifies the programmed AC output voltage into a stable DC voltage. Pacific Power’s AMX and ASX-Series high performance Linear AC Power Sources offer low output voltage noise and distortion, ease of installation, and high AC waveform fidelity that is used to produce the required DC output voltage.

Features:


  • Wide Useable Range Up to 600Vdc Voltage and 20Adc Current Output
  • Three Phase AC Input Requires Programmable AC Power Source with Square Wave Capability
  • Adds DC capability to AC Power Source DC Output Voltage Derived from Provided AC RMS Input Voltage
  • Program DC Transients Using UPC Controller Functions Run Dynamic Voltage Tests on DC Powered Equipment
  • Dual Banana Jacks Provided on Front and Rear Panel Easy Connection of DMM or Scope to Monitor DC Output Voltage
  • Circuit Breaker on Front Panel Quick AC Input Power Disconnect Removes DCR Unit from AC Source Output
  • 19” Rack Mount Enclosure with Removable Rack Ears Fits easily on Lab Bench, on Top of the AC Power Source Used or in Instrument Cabinet
