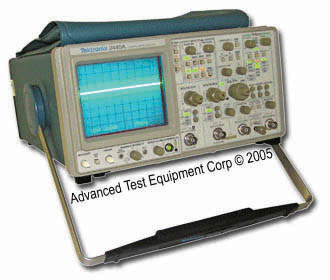

Tektronix 2445A Analog Oscilloscope 150 MHz

Rent Tektronix 2445A Analog Oscilloscope 150 MHz
Enlarge Image
Tektronix Test Equipment 2445A
Request Quote Print Page
Datasheet
4 Ch, 150 MHz, Analog Oscilloscope

Tektronix Test Equipment 2445A Features
  • 150 MHz Bandwidth
  • 2.33 ns Rise Time
  • Auto Setup
  • Save and Recall Setups
  • Set-Up Sequencing
  • On-Screen Trigger-Level Readout
  • Volts and Time Cursors with On-Screen Readout
  • Cursors After Delay
  • Four Independent Channels
  • Switchable 1 M ohms and 50 ohms Inputs (channels 1 & 2)
  • Channel 1 and Channel 2
    • Frequency Response (-3 dB Bandwidth): 150 MHz
    • Step Response: ≤ 2.33 ns
  • Horizontal System:
    • A Sweep Time Base Range: 500 ms/div to 10 ns/div in a 1-2-5 sequence of 24 steps. (X10 magnification extends fastest sweep rate to 1 ns/div)
    • B Sweep Time Base Range: 50 ms/div to 10 ns/div in a 1-2-5 sequence of 21 steps. (X10 magnification extends fastest sweep rate to 1 ns/div)
    • DT Readout Resolution: either 20 ps or 0.025% of full scale, whichever is greater
    • Sweep Delay Range: from 500 ms/div to 20 ns/div
