Parameter |
Specification |
Notes |
Operating Frequency Range |
18.0 - 26.5 GHz |
|
Power Output @ Psat |
200 W Min/250 W Typ |
CW or Pulse |
Power Output @ P1dB |
100 W Typ |
|
Power Gain |
53 dB Min |
0 dBm or less for rated Pout |
Power Gain Flatness |
4.0 dB p-p Typ |
Constant input power |
Gain Adjustment Range |
20 dB Min |
Local or remote capable |
Input / Output Return Loss |
-10 dB Max |
|
Operating Voltage |
230/380 VAC, 3 Phase |
47 - 63 Hz |
Power Consumption |
8000 W Max |
At rated Pout |
RF Conn. In / Out / Sample (optional) |
(2.92) K-Female / WR42 / (2.92) K-Female |

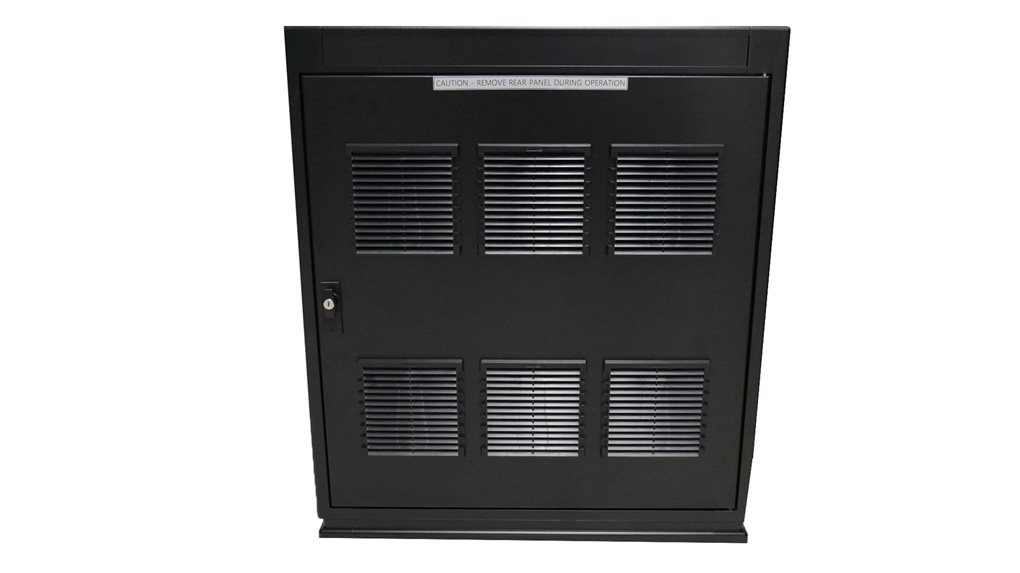

Rear Panel |
Interface Connector |
9-Pin D-Sub |
Rear Panel |
Dimensions W x H x D |
19.02 in x 20.95 in x 31.5 in |
12U, excluding connectors |
Weight |
99.2 lb. |
|
