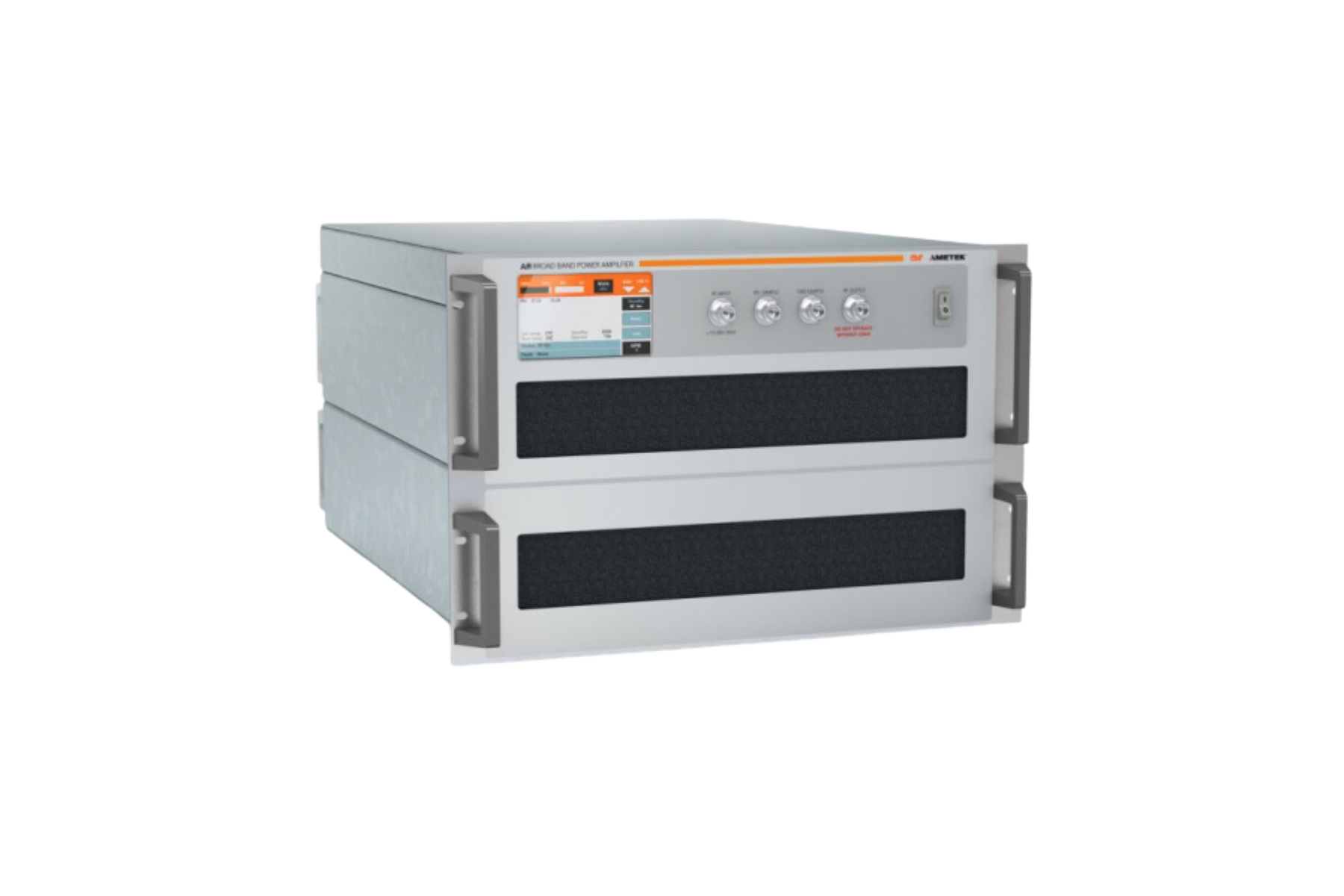

Amplifier Research AR4I8-200 CW Amplifier
200 W, 4.0 - 8.0 GHz
The Amplifier Research AR4i8-200 is a high-performance CW amplifier that operates in the frequency range of 4 kHz to 8 GHz, and provides up to 200 watts of output power.
This model is ideal for EMC testing, communications, and research applications, providing precise control and a wide dynamic range for laboratory settings and field use.
| Parameter | Specification |
|---|---|
| Frequency Range | 4.0 - 8.0 GHz |

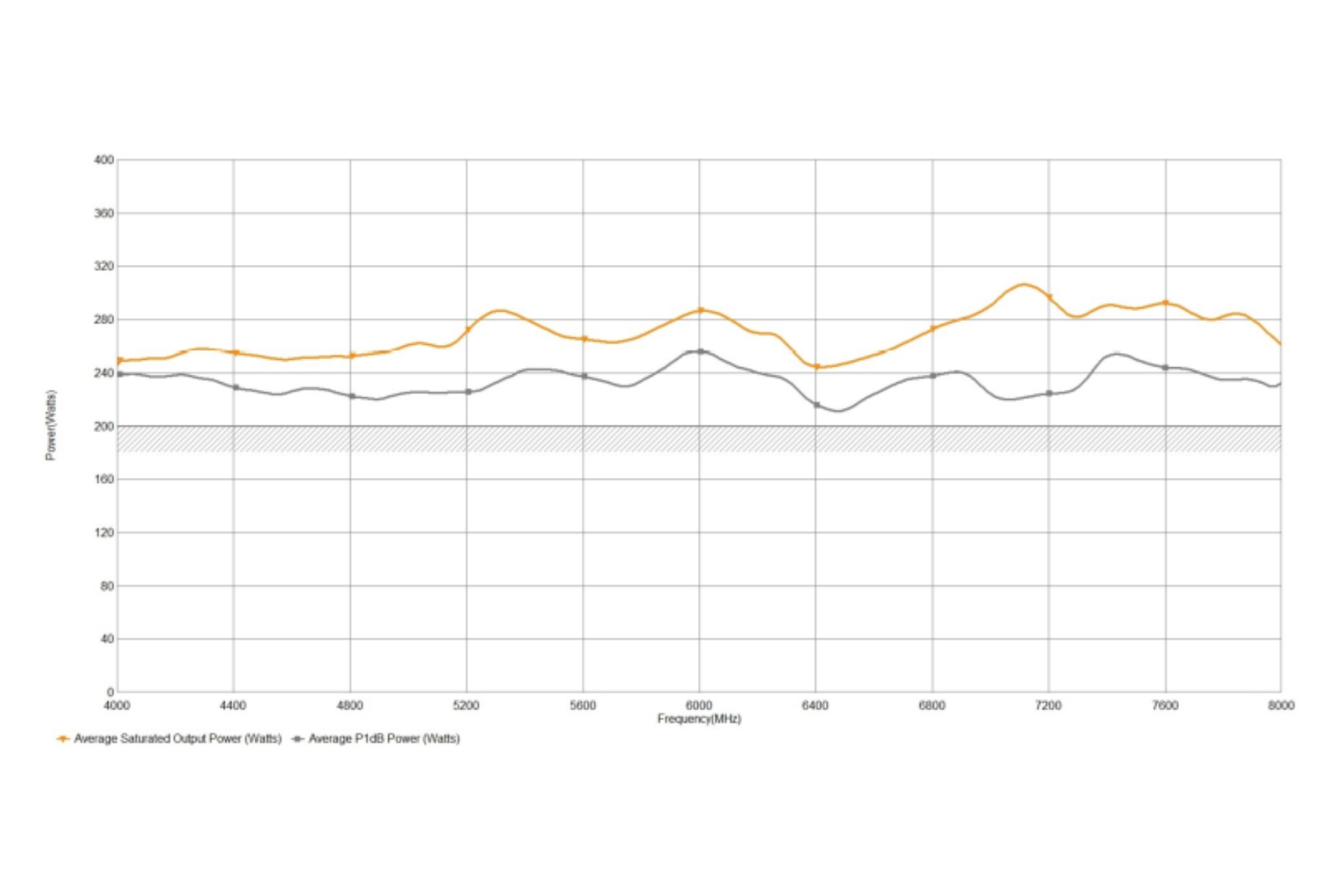

| Power Output | 230W (min) |
| Gain | 53 dB |
| Output Impedance | 50 Ohm |
| VSWR | 2.0:1 |
| Spurious | -70 dBc |
| Noise Figure | 12 dB |
- Class A Operation
- 100% Mismatch Tolerant with no Foldback
- Scalable Modular Construction Ethernet
- USB, GPIB, RS-232 Remote interface
- Radiated immunity (ISO, IEC, MIL)
- Telecom Component Test
- Aerospace & Defense
- EN 61326-1 | EMC Testing of Laboratory Equipment
- EN 61010-1 | Safety of Measuring, Control, and Laboratory Equipment
- IEC 61000-4-3 | Radiated, Radio-Frequency, Electromagnetic Field Immunity Test
- RTCA/DO-160 Section 20 | Radio Frequency Susceptibility
- MIL-STD-461 RS103 | Radiated Susceptibility, Electric Field
- HIRF
- DIRECTIVE 2011-65-EU - Restriction of Hazardous Substances
SKU: AMPL-AR4I8-200
