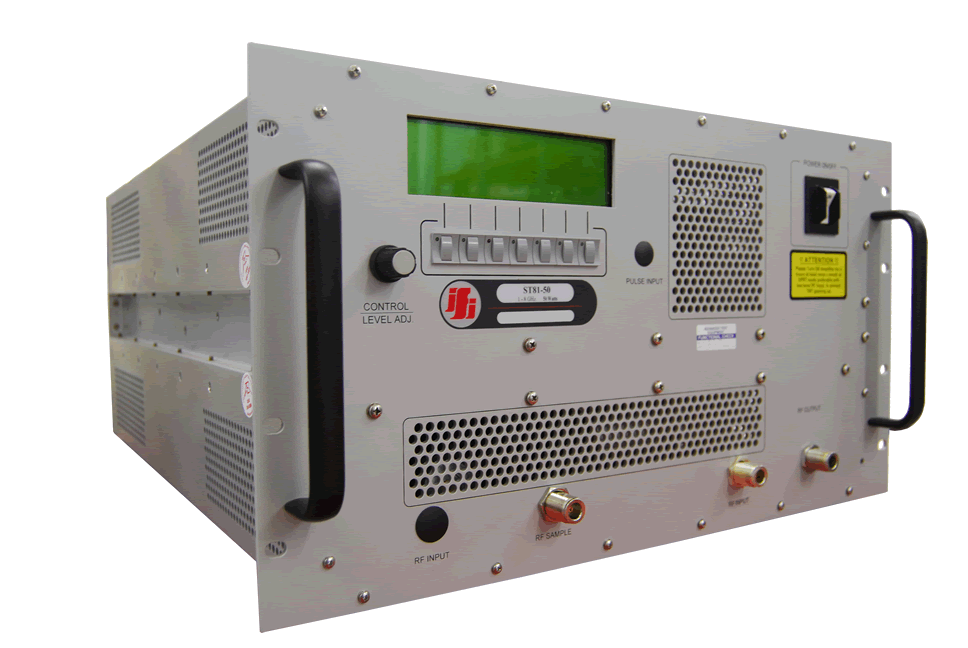

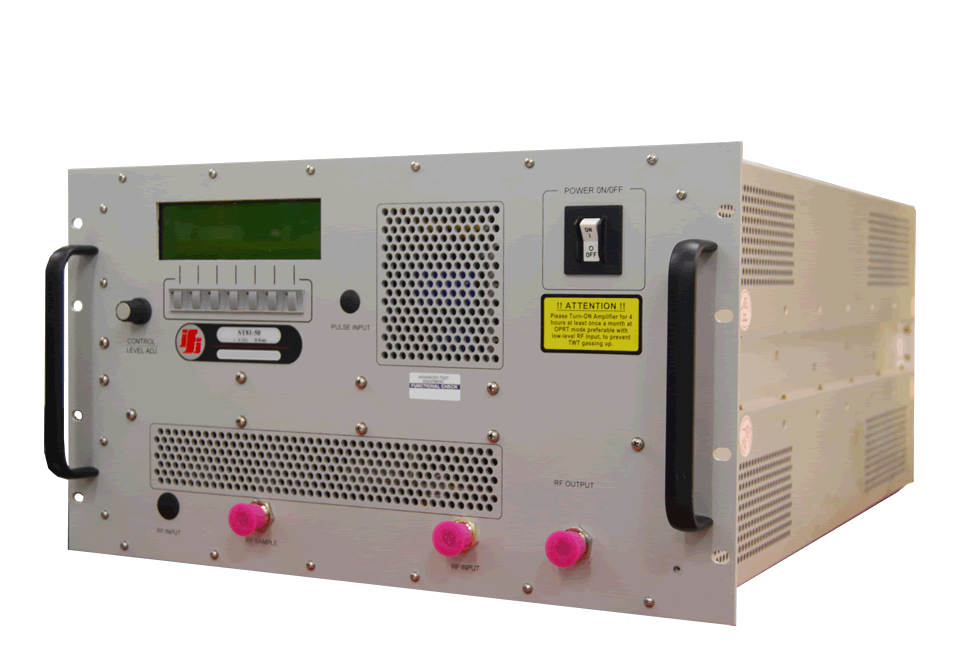

IFI ST81-50 Solid State/TWT (CW) Amplifier 1.0 GHz - 8.0 GHz, 50 Watt

1.0 GHz - 8.0 GHz, 50 Watt Solid State/TWT (CW) Amplifier

Product Info Available Add-Ons Related Products

Frequency Range:	1-8 GHz Bnd 1: 1-2 GHz (Solid State) Bnd 2: 2-8 GHz (TWT)
Rated Power:	50 Watts minimum (70W typical)
Gain @ rated power:	47 dB
Prime Power:	100-240 VAC +/-10%, 50/60 Hz, Single Phase*
Input/Output Impedance:	50 Ω (VSWR 2.0:1)
RF Input/Output Connectors:	Type N Female
Temperature:	0° to 50° C (40° C @ 10,000 feet)
Non-operating Temp:	-20° to 70° C (50,000 feet max)
Humidity:	95% without condensation
Altitude:	10,000 feet
Cooling System:	Air cooled, self contained
Modulation:	AM/FM/Pulse
Configuration:	19" Rack Mount; 19"W x 25.25"L x 10.5"H
Spurious:	-50dBc
Harmonics (nominal):	Band 1: 0.8-2.0 GHz, -20 dBc @ linear power (35-40 Watts) Band 2: 2-3GHz: -3 to –8 dBc @ Rated Power 3-6GHz: -8 to –15 dBc @ Rated Power 6-8GHz: -15 to –25 dBc @ Rated Power

VSWR Protection against an output mismatch
Alternate Prime Power
GPIB IEEE 488 Remote Control
Forward RF Sample Port on the Front Panel, type N-F
Internal Pre-amplification to obtain rated output power with an input level of 0dBm or less.
RF Input/Output Connectors on the Front Panel
Internal Systems Diagnostics
Elapsed Time Metering in hours
RF Safety Interlock, type BNC
Forward/Reflected Power Indication simultaneously on Front Panel display
