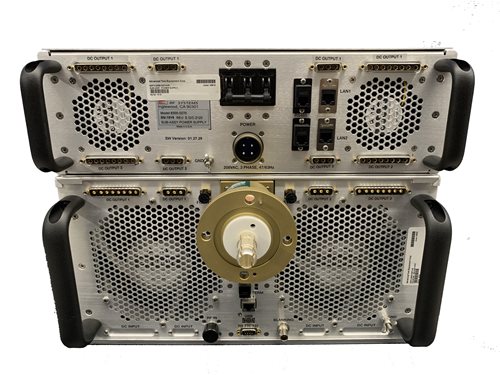

Empower 2180 Solid State Broadband High Power Amplifier | 1 GHz – 2.5 GHz, 2000 W

The Empower 2180 is a solid state broadband high power amplifier suitable for a variety of octave bandwidth applications. GaN internal devices power a wide frequency response, high gain, high peak power capability, and low distortion. This amplifier is a class AB, air-cooled, is a 5RU + 3RU multi-drawer with the force cooling included. It can be remotely managed via ethernet, and has extended memory for storage of control parameters and event logs.

Product Info Related Products

Operating frequency	1000 – 2500 MHz
Power output CW	2000 W
Input power range	-3.0 – 3.0 dBm
Operating voltage	208 V
Class	AB
Power consumption	10000 VA
Operating temperature	-10°C – 40°C
Input overdrive	Max +10 dBm
Dimensions (W x H x D)	17.5 x 8.75 x 22 in

Solid-state class AB design
Suitable for CW, AM, FM, Pulse and some linear applications (consult factory for other modulation types)
Compact modular design
50 ohm input/output impedance
Built-in control, monitoring, and protection functions
High reliability and ruggedness

SKU: EMPO-2180
