CPI VSZC-6963J2 TWT Amplifier, 2-8 GHz 300W

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery

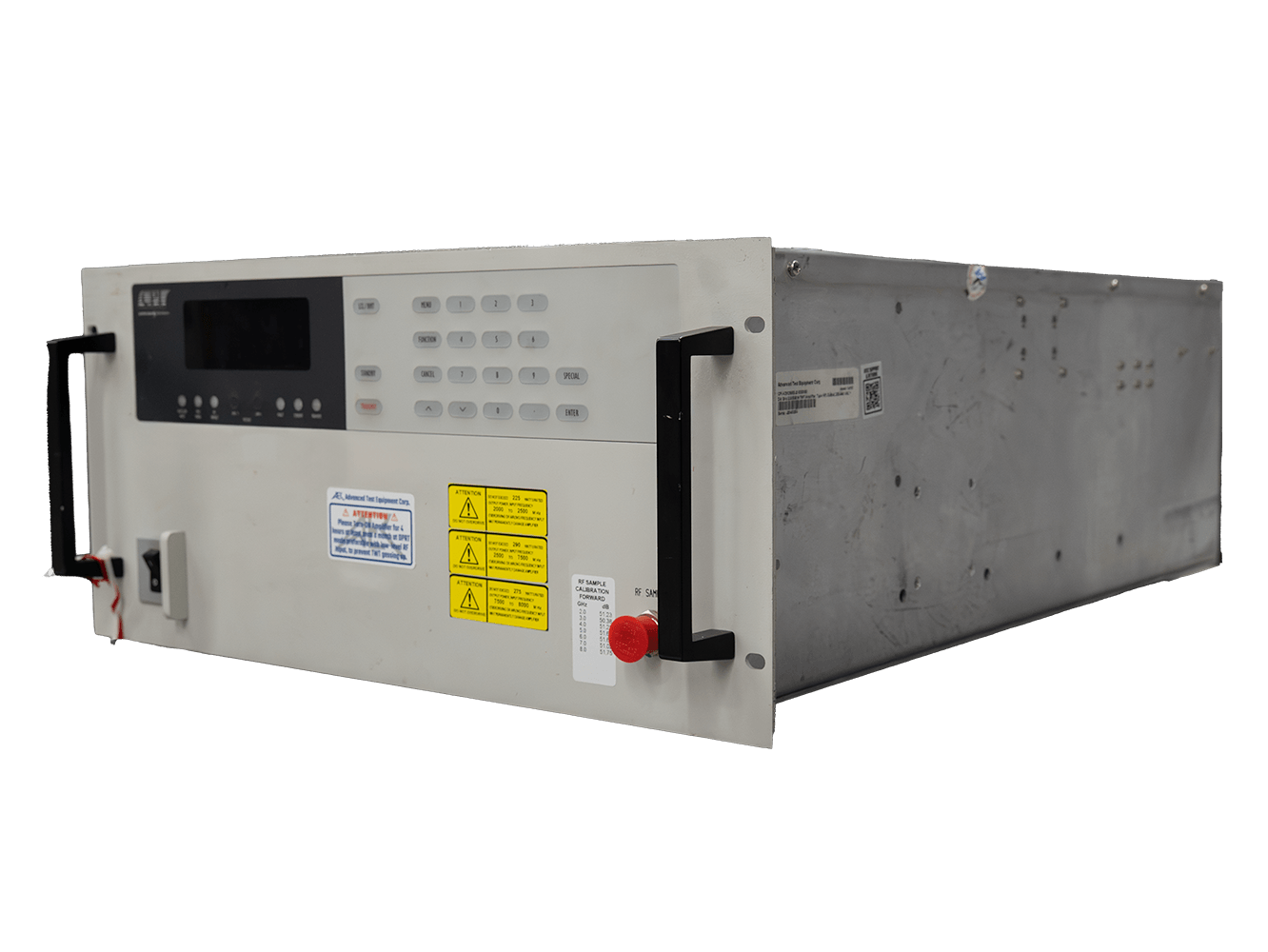

The VZS/C-6963J2 series CMPA is packaged in a 8.75 inch tall slide-mounted drawer suitable for standard 19-inch rack mounting. This enclosed assembly houses both the RF and power supply sections of the amplifier. The RF section includes the TWT, solid state intermediate power amplifier (IPA), RF detectors, output directional couplers and optional input isolator. The power supply section includes the power factor correction, power processor, and high voltage regulation circuitry. It also contains the microprocessor based monitor and control system necessary to permit safe, efficient and reliable operation of the J Series CMPA. The VZS/C-6963J2 series CMPA is protected from operational damage caused by abnormal AC, DC, RF faults or insufficient cooling. The amplifier will automatically recycle itself after a prime power interruption or transient fault condition.
