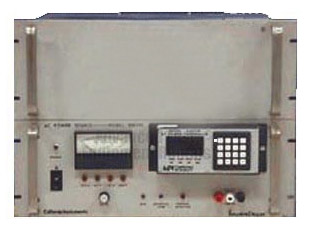

California Instruments 1501TC Single-Phase 1.5 kVA Power Source

Discontinued

0 - 32/65/130/260VAC, 1.5kVA, 45Hz - 5kHz, AC Power Source

Product Info Related Products

Power Output: 1500 VA at 130 to 110 volts rms output with power factor of unity to ±0.7
Output Voltage Ranges: 0 to 32.5 volts rms, 0 to 65 volts rms, 0 to 130 volts rms and 0 to 260 volts rms
Total Harmonic Distortion: less than 0.3% distortion at midband (200 to 600 Hz), and less than 0.5% distortion from 45 Hz to 5 KHz.
Amplitude Stability: ±0.25% for 24 hours at constant line, load and ambient temperature conditions.
Load Regulation: ±1% over the range from 45 Hz to 5 KHz when tested at unity power factor
Full Power Frequency Range: 45 Hz to 5 KHz.
AC Input Line: 210 to 250 volts rms. Unit may be wired for the following single phase voltages on special order: 115 VAC, 208 VAC, 220 VAC and 240 VAC
AC Input Frequency: 48 to 65 Hz
AC Input Power: 5000 watts maximum under worst case line and full rated worst case load conditions
Dimensions: 14" H x 19" W x 21" D
Approx. shipping weight: 210 lbs.

SKU: CALI-1501TC

High accuracy measurement for RMS voltage, RMS current, frequency, true power, and more
Built-in power factor correction circuit provides input power factor
Programmable current limit

Programmable Sine, Square, or Clipped Sine waveform output Programmable voltage, current limit, frequency, phase, and distortion
Power line disturbances simulation capability
30 factory-installed harmonic waveforms in the waveform library
