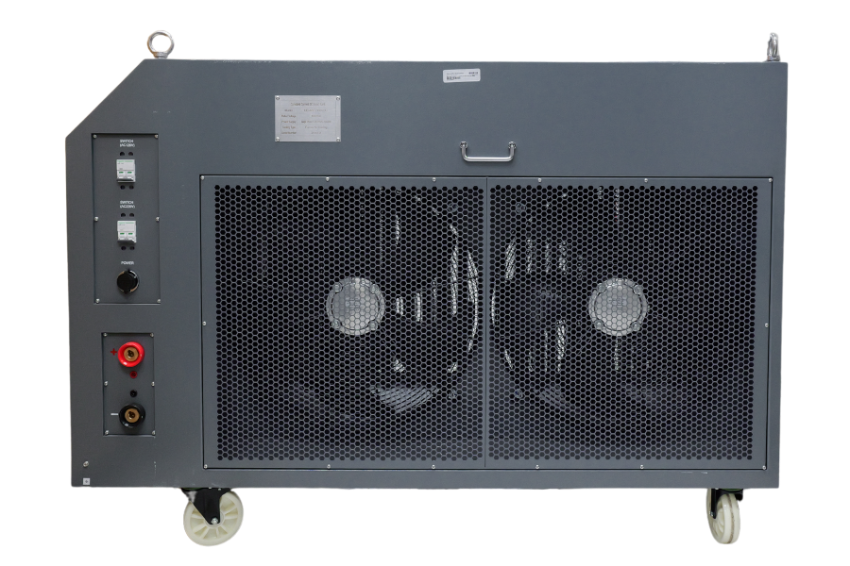

The Eagle Eye LB-480-300-CC is a high-performance constant current DC load bank designed for testing and maintaining 480V, 60Hz systems with a current capacity of up to 300A. Equipped with a user-friendly LED display, it allows for precise real-time monitoring of voltage, current, and key metrics during operation. This load bank operates on 110/220VAC, 50/60Hz input power, offering versatility for various testing environments. Built for durability and portability, the LB-480-300-CC is ideal for rigorous field use, ensuring reliable and accurate performance in critical electrical system evaluations.
Features
- LED display for voltage, current, & test time
- Four test conditions for discharge auto-stop: Test Time, End Voltage, Exceeded Capacity, and Cell Voltage (CCS models only)
- Unit will alarm and end discharge in the event of overheating, abnormal disconnection of battery, improper polarity detected
- Automatically runs fans after the test has concluded for maximum heat protection
- Previously used parameters saved after powering off the machine
Specifications
| Rated Voltage |
480V DC |
| Current Capacity |
300A |
| Power Supply |
Single Phase |
| Input Power |
120/220VAC, 50/60Hz |
| Cooling Type |
Forced Air Cooling |
Applications
- Power Plant Maintenance
- Battery and UPS Testing
- Field testing applications, where equipment needs to be tested on-site rather than in a controlled environment.
