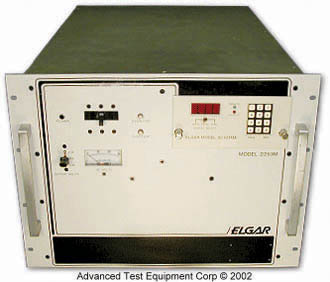

Elgar 2253M 2250 VA, 3 Phase AC Power Supply

Elgar 2253M 2250 VA, 3 Phase AC Power Supply
Enlarge Image
Elgar Power Supplies 2253M
Request Quote Print Page
Manual
0-130VAC, 2.25 kVA Three Phase AC Power Supply

Elgar Power Supplies 2253M Specs
  • Output Voltage: 0-130VAC RMS L-N
  • Five Output Voltages, 3 Phase:
    • 1. 3 650VA/V   130VRMS 45-5kHz
    • 1 52VA         26 VRMS 400 Hz
    • 1 13VA         26 VRMS 400 Hz
    • 1 13VA         26 VRMS 400 Hz
    • 1 130VA       130 VRMS 400 Hz
  • Programming capabilities with the 9010 Plug-In
  • Overload and Over-temperature Protection
  • INPUT
    Voltage and Phase: 208 VAC L-L, 3 phase, 47-63 Hz
    Maximum Volt-Amperes: 5.5 kVA
  • Weight (Net lbs): 300
