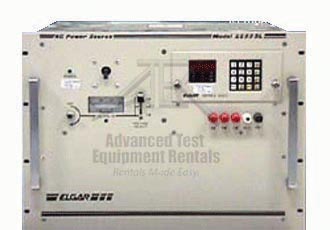

Elgar 2253SL 2.25 kVA, 3 Phase AC Power Supply

Elgar 2253SL 2.25 kVA, 3 Phase AC Power Supply
Enlarge Image
Request Quote Print Page
Datasheet Specifications

Specifications:

  • Minimum Total Volt Ampere Rating: 2250
  • OUTPUT 3 PHASE
    Three Output Voltage Ranges: 0-65/130/260 VAC
    0-65 VRMS - 17.3 A max
    0-130 VRMS - 8.65 A max
    0-260 VRMS - 4.3 A max
    Frequency Range (Hz): 45 to 5 k
  • Programming capabilities with 9023 controller (click here for more info)
    Programmable via IEEE 488 GPIB
    Programmable Current Limit - Auto Shut Down and Reporting
  • Overload and Over-temperature Protection
  • INPUT
    Voltage and Phase: 208 VAC, 3 phase
    Maximum Volt-Amperes: 9.6 kVA
  • Weight (Net lbs): 207
