Prâna IP-DR250 Bulk Current Injection Probe
- Frequency Range: 10kHz - 400MHz
- Power: 500W (CW), Loss: -33... -6dB
- Inner Diameter: 1.72in (43.8mm)
PMM EMCL-35 10 kHz - 1 GHz EM Injection Clamp | 35mm Aperture
- Frequency Range: 10kHz - 1GHz
- Power: 100W, Typ. Coupling Factor: -3dB
- Inner Diameter: 1.38in (35mm)
Fischer Custom Communications F-120-9A
- Frequency: 10kHz - 230MHz
- Power: 100W, Loss: <8dB
- Inner Diameter: 1.57in (40mm)
Solar 9719-1N Injection Probe
- Frequency Range: 10kHz - 350MHz
- Power: 200W
- Inner Diameter: 1.5in (38mm)
Fischer Custom Communications F-130A Bulk Current Injector Probe
- Frequency Range: 1MHz - 700MHz
- Power: 50W (CW), Loss: ≤6dB
- Inner Diameter: 1.26in (32mm)
Solar 9142-1N Bulk Current Injection Probe
- Frequency Range: 2 - 450MHz
- Power: 200W
- Inner Diameter: 1.5in (38mm)
Solar 9335-2 Multiple Impedance Coupling Device
- Frequency Range: 10kHz - 10MHz
- Impedance: 50Ω
- Inner Diameter: 1.5in (38mm)

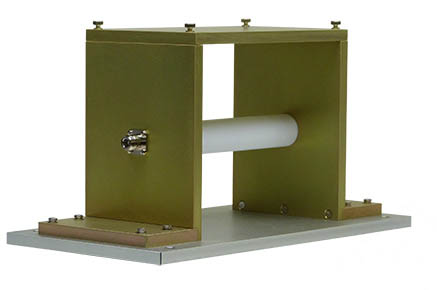

Solar 9125-1 Calibration Test Fixture | 20 Hz - 500 MHz
- Calibration test fixture
- Frequency range of 20 Hz to 500 MHz
- Type N connectors
Solar 9144-1N Injection Probe
- Frequency Range: 10kHz - 100MHz
- Power: 100W
- Loss: -31... -8dB (Approx.)
Fischer Custom Communications BCICF-1 Calibration Fixture
- Excellent VSWR over a broad bandwidth: <2:1 over the frequency range of 10kHz – 400 MHz when the probe is in fixture
- Accommodates a wide variety of Bulk Current Injection Probes that operate between 10 kHz – 400 MHz
ETS-Lindgren 95236-1 Bulk Current Injection Probe
- Frequency Range: 1MHz - 100MHz
- Power: 100W, Loss: <15dB
- Inner Diameter: 1.57in (4.0cm)
Solar 9108-1N Clamp-On Injection Probe
- Frequency Range: 10kHz - 200MHz
- Power: 50W
- Inner Diameter: 1.25in (32mm)
PMM F-120-9A Injection Probe
- Frequency Range: 10kHz - 230MHz
- Power: 125W (CW), Loss: <8dB
- Inner Diameter: 1.57in (40mm)
Solar 9120-1N Injection Probe
- Frequency Range: 4MHz - 1GHz
- Power: 50W
- Inner Diameter: 1.25in (32mm)
PMM EMCL-20 10 kHz - 1GHz EM Injection Clamp | 20mm Aperture
- Frequency Range: 10kHz - 1GHz
- Power: 100W, Typ. Coupling Factor: -3dB
- Inner Diameter: 0.79in (20mm)
Teseq CIP 9138 Current Injection Probe
- 4kHz – 230MHz
- RF Input: Type N
- Window Diameter: 43mm
AH Systems ICP-622 Injection Current Probe
- Frequency Range: 1MHz - 500MHz
- Power: 200W (CW), Loss: 4 - 16dB
- Inner Diameter: 1.5in (38mm)
AH Systems ICP-621 Injection Current Probe
- Frequency Range: 10kHz - 100MHz
- Power: 100W (CW), Loss: 8 - 30dB
- Inner Diameter: 1.5in (38mm)
Teseq PCJ 9202 Calibration Jig
- DC up to 230 (400) MHz
- Impedance: 50 Ω
- Used w/ CIP 9138 BCI Probe

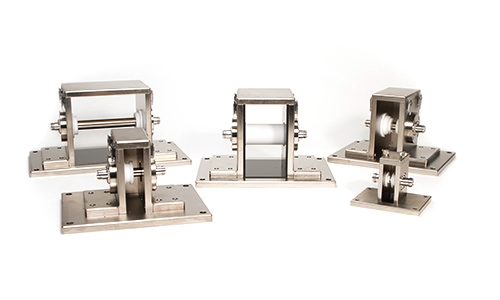

PMM BCICF-6-150 Injection Probe Calibration Fixtures

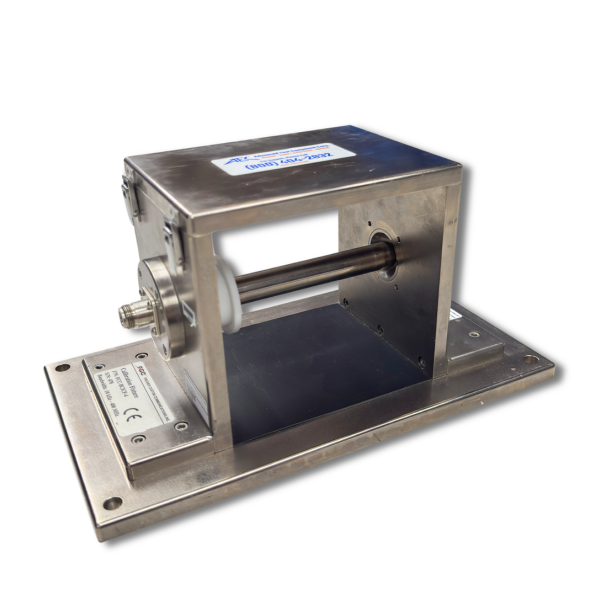

PMM BCICF-4 Injection Probe Calibration Fixtures
