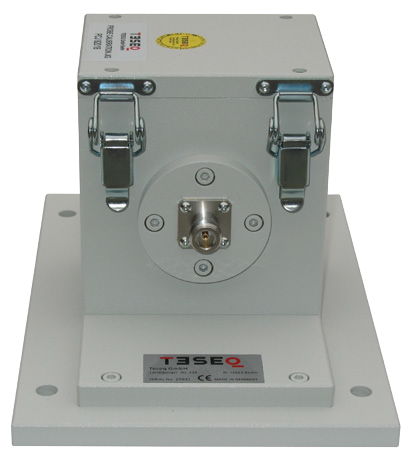

Teseq PCJ 9201B Calibration Jig

DC up to 400 MHz

The Teseq PCJ 9201B is a calibration jig made for setting test levels and verifying insertion loss in current probes used in EMC testing. It supports a frequency range from DC to 400 MHz and meets ISO 11452-4, RTCA/DO-160 Section 20, MIL-STD-461 CS114, and IEC/EN 61000-4-6 requirements. The jig features 50 Ω nominal impedance, N-type connectors, and accommodates probes up to 115 mm in diameter. Typical VSWR performance is ≤1.10:1 up to 1 MHz and ≤3.50:1 at 400 MHz.

Frequency Range	DC – 400 MHz
Nominal Impedance	50 Ω
VSWR (Typical, No Probe)	≤1.10:1 @ 10 kHz – 1 MHz ≤1.14:1 @ 10 MHz ≤1.22:1 @ 30 MHz ≤1.50:1 @ 100 MHz ≤2.00:1 @ 200 MHz ≤2.75:1 @ 300 MHz ≤3.50:1 @ 400 MHz
Dimensions (L × W × H)	260 × 181 × 150 mm
Maximum Probe Diameter	115 mm
Minimum Probe Window Diameter	16 mm
Maximum Probe Width	67 mm
Connector Type	N-type female
Operating Temperature	+5 °C ... +45 °C
Weight	Approximately 4.5 kg

Frequency Range

DC – 400 MHz

Nominal Impedance

50 Ω

VSWR (Typical, No Probe)

≤1.10:1 @ 10 kHz – 1 MHz
≤1.14:1 @ 10 MHz
≤1.22:1 @ 30 MHz
≤1.50:1 @ 100 MHz
≤2.00:1 @ 200 MHz
≤2.75:1 @ 300 MHz
≤3.50:1 @ 400 MHz

Dimensions (L × W × H)

260 × 181 × 150 mm

Maximum Probe Diameter

115 mm

Minimum Probe Window Diameter

16 mm

Maximum Probe Width

67 mm

Connector Type

N-type female

Operating Temperature

+5 °C ... +45 °C

Weight

Approximately 4.5 kg
