Teseq PCJ 9202 Calibration Jig

DC up to 230 (400) MHz

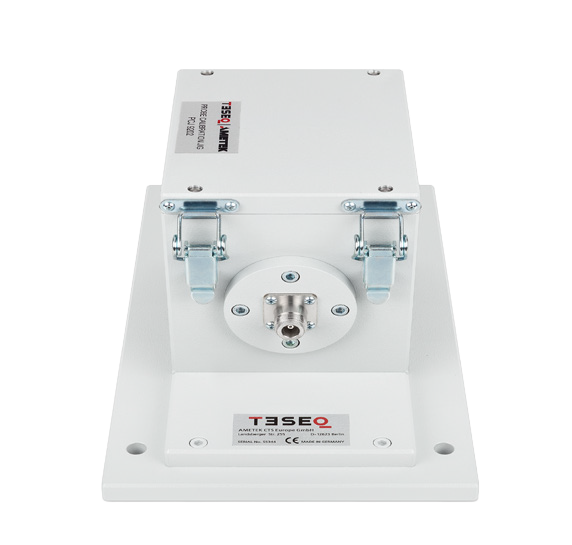

The Teseq PCJ 9202 is a calibration jig made for use with the CIP 9138 current injection probe in BCI and IEC/EN 61000-4-6 conducted immunity test setups. It supports a frequency range from DC to 230 MHz, with usable performance up to 400 MHz, and maintains a nominal impedance of 50 Ω. The jig includes N-type female connectors and accommodates probes up to 115 mm in diameter. It provides a stable platform for consistent and repeatable test level calibration.

Frequency Range	DC – 230 MHz (usable up to 400 MHz)
Nominal Impedance	50 Ω
Dimensions (L × W × H)	311 × 181 × 150 mm
Maximum Probe Diameter	115 mm
Minimum Probe Window Diameter	16 mm
Maximum Probe Width	117 mm
Connector Type	N-type female
Operating Temperature Range	+5 °C ... +45 °C
Weight	Approximately 5.2 kg
Compatible Probe	CIP 9138

Frequency Range

DC – 230 MHz (usable up to 400 MHz)

Nominal Impedance

50 Ω

Dimensions (L × W × H)

311 × 181 × 150 mm

Maximum Probe Diameter

115 mm

Minimum Probe Window Diameter

16 mm

Maximum Probe Width

117 mm

Connector Type

N-type female

Operating Temperature Range

+5 °C ... +45 °C

Weight

Approximately 5.2 kg

Compatible Probe

CIP 9138
