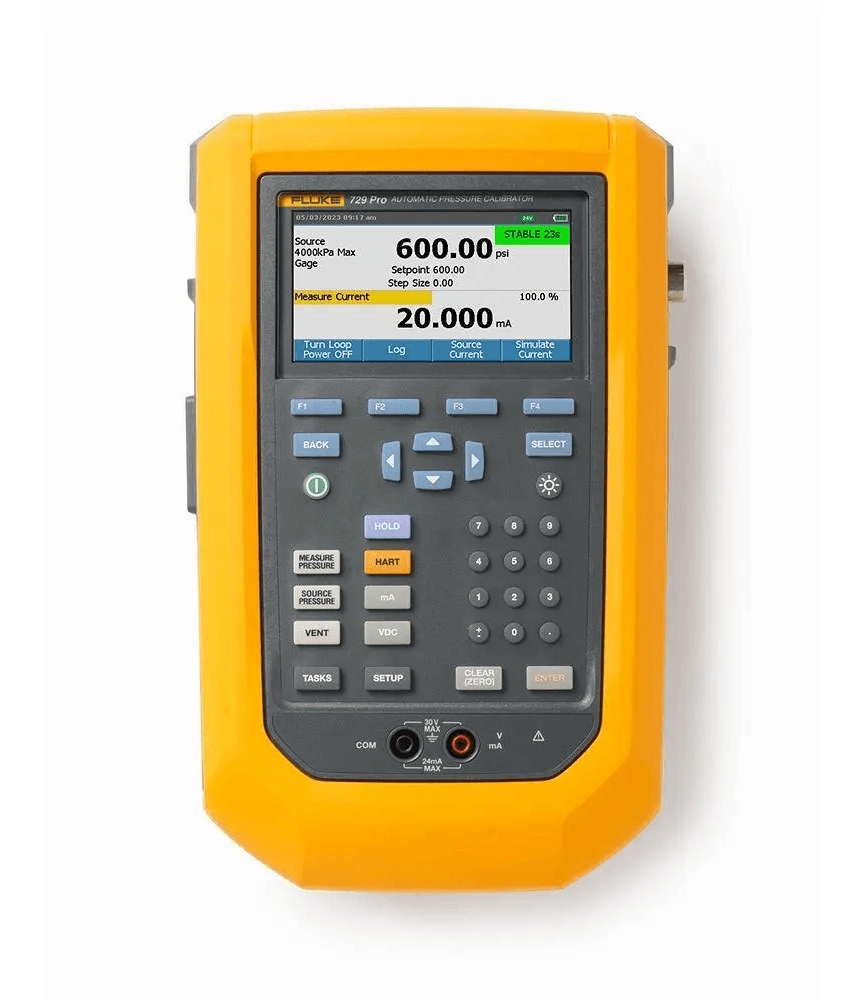

Fluke 729 Pro Automatic Pressure Calibrator

The Fluke 729 Pro Automatic Pressure Calibrator is a portable calibrator with automatic internal pressure generation and regulation up to 1,000 psi (7 MPa). It features replaceable pressure modules, HART communication for transmitter configuration, and automatic documentation of calibration results. The device supports mA and voltage measurement, pressure leakage and switch testing, and can be extended with external pressure modules and temperature probes. It operates on a rechargeable Li-ion battery and includes a color graphic display for clear test status and results.

Product Info Related Products

Pressure Control Range	-13 – 1,000 psi (-0.90 – 70 bar, -90 – 7,000 kPa)
Pressure Type	Gauge/absolute (depends on module)
Control Stability	0.005% of FS (minimum)
Built-in Pressure Modules	6 modules (replaceable)
External Pressure Modules	750 Series, up to 10,000 psi (70 bar, 7 MPa)
1-Year Accuracy	0.02% of FS
mA Measurement/Source/Simulate	0 – 24 mA (1 μA resolution)
Voltage Measurement	0 – 30 V DC (1 mV resolution)
Loop Power	24 V DC
Temperature Measurement	-50°C ... +150°C with 100 Ω Pt RTD (0.01°C resolution, ±0.1°C accuracy)
Display	Color graphic, dual three-channel
Battery	Rechargeable Li-ion, tool-free replacement
Operating Temperature	-10°C ... 50°C
Pressure Control Temperature	0°C ... 50°C
Operating Altitude	< 3,000 m
Humidity	Non-condensing, ≤90% RH (<10°C), ≤75% RH (10–30°C), ≤45% RH (30–50°C)
HART Communication	Yes

Automatic pressure generation and regulation to 1000psi
Replaceable pressure control modules
Built-in test templates, one-key calibration
HART communication
Pressure leakage testing
Automatic fine-pressure adjustment, automatic pressure stabilization
Powerful, replaceable Li-ion battery
Quick pressure release valve with a muffler
Extend measurement range with 750P Series pressure modules
Measure temperature with 720RTD probe
Bright dual-three-channel /color graphic display
Weight <5kg
Absolute and gage pressure modules up to 7MPa.
Use the modules to change the Fluke 729Pro to a different output pressure range

AC/DC converter
Power cord
Rechargeable Li-ion battery
Stackable test lead set
AC280 Sure Grip hook set (red and black)
Alligator clips (red and black)
One set of TP220 test probes (red and black)
USB communication cable: 3 ft (1 m) Type A plug for host (PC) to Mini-B plug for device
Flexible hose, 2 mm diameter , 1.5 m (5 ft) length
Fitting, 1/8 in NPT-Female x 1/4 in NPT-Female
Fitting, 1/8 in NPT-Male x 1/4 in NPT-Male
Fitting, 1/8 in NPT-Female x M20 Female
Fitting, 1/4 in BSP-Female x 1/8 in NPT-Female

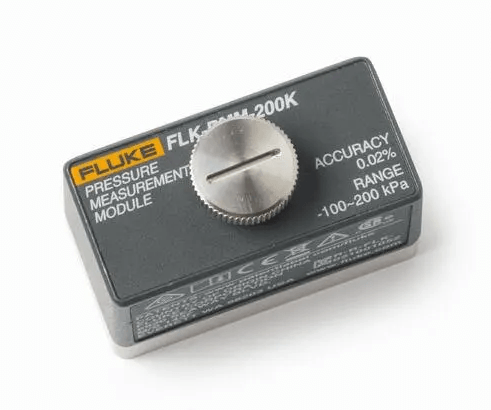

Pressure Measurement Module (PMM)
Hose for draining condensed water generated inside the Product. 1/8 in diameter, 1 ft length
Adjustable quick-release strap for hanging the product, Safety Information, Traceable calibration report with data, PTFE tape
