Hipotronics 880PL-10mA DC Hipot Tester

Hipotronics 880PL-10MA 80KV DC Hipot Tester
Enlarge Image
Request Quote Print Page
Datasheet

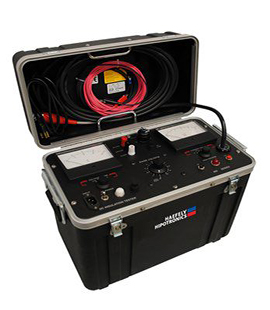

The Hipotronics 880PL-10mA-A portable dc insulation tester consists of equipment particularly suited for use in the utility and wire and cable industries. These units are used to test cables, capacitors, and other insulated samples.

The models are housed in a high impact plastic cabinet containing an oil-filled, hermetically sealed steel container. The storage section at the rear of the cabinet contains two insulated return leads, an auxiliary power plug, a three wire input power cord, and a shielded HV output cable with a connector clamp.



Features:

  • Triple range kV meter
  • Four range current meter
  • Adjustable voltage control
  • "Zero start" interlock
  • Insulation return and guard circuits
  • HV shorting solenoid with a discharging resistor
  • Provision for an external interlock or "deadman" switch
  • Input and backup overload fuses
  • Pilot light indicators for ac input and high voltage output
  • Rated output current of 10 Hipotronics 880PL-10mAmA for 15 minuetes (capacitor charging duty)
  • Internal circuit protection allowing for repeated short circuits at full output



Specifications:

Output Voltage 0 - 80 kV Negative Polarity
Ripple at Rated Load 2.5% @ 50 Hz
Regulation NL-FL 15%
