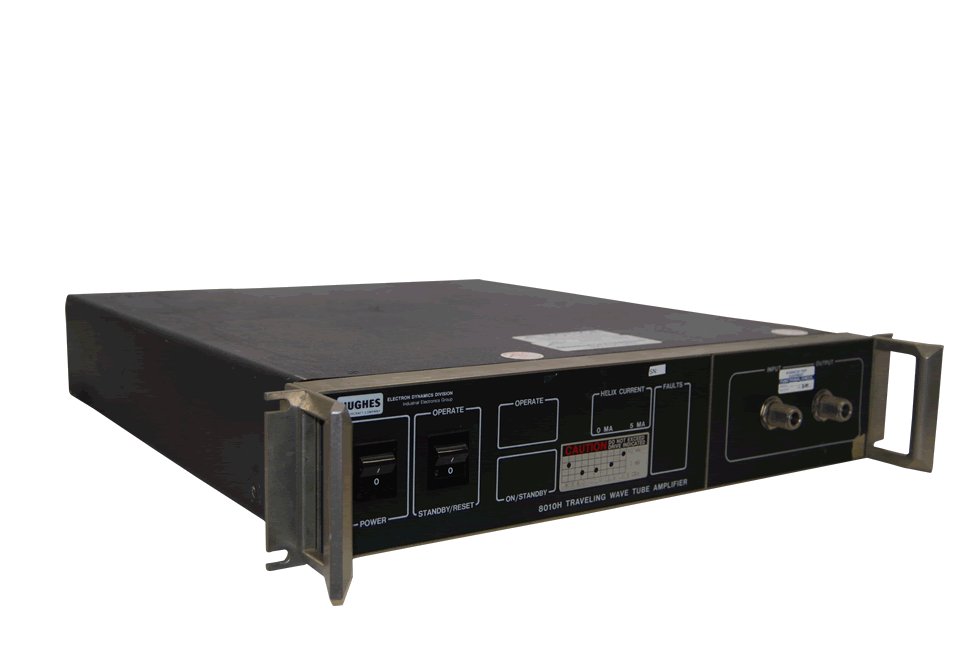

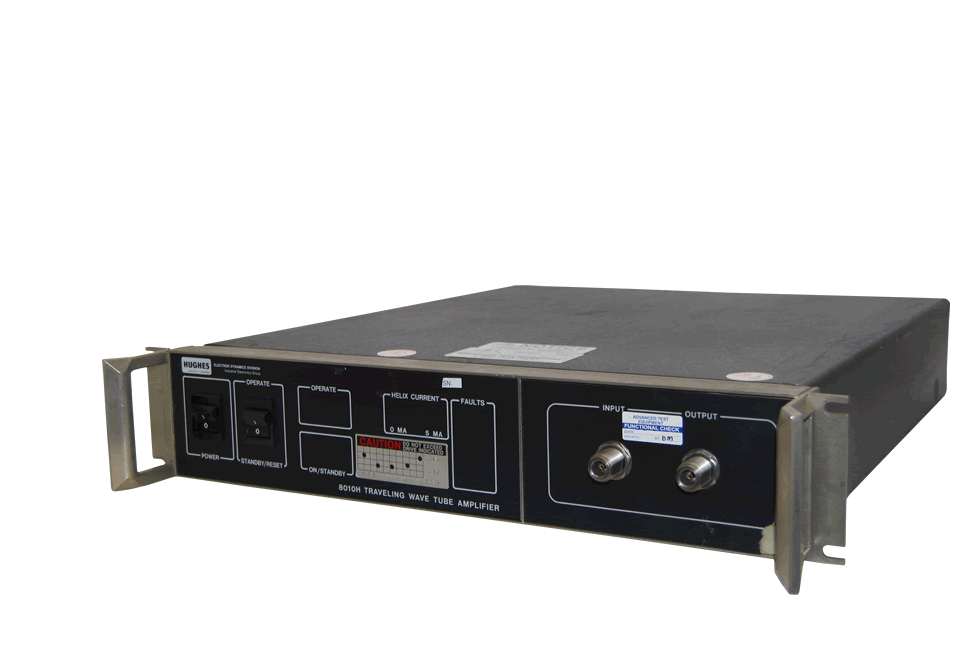

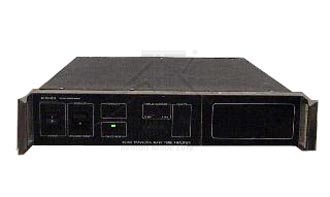

Hughes 8010H (10 Watt) Series
Request Quote Print Page

Microwave TWT Amplifiers

Available Options

OPTION F- Local/Remote Provides remote control of the amplifier.

OPTION H- TTL Remote Interface This option replaces the standard Option F with TTL interface logic.

OPTION J- Output Isolator Protects the traveling wave tube from high external load VSWR conditions. External isolators also available.


Hughes 8010H (10 Watt) Series Features
  • Gain at Rated Power Output: 30 dB min.
  • Duty: CW
Hughes 8010H (10 Watt) Series Specs
TWTA Model Number Frequency (GHz) RF Connectors (In/Out)
8010H09F-000 1.0 - 2.0 Type N
8010H01F-000 2.0 - 4.0 Type N
8010H02F-000 4.0 - 8.0 Type N
8010H03F-000 8.0 - 12.4 Type N
8010H04F-000 12.4 - 18.0 SMA
8010H07F-000 6.5 - 13.5 Type N
8010H11F-000 18 - 26.5 UG596
8010H12F-000 26.5 - 40 UG600
