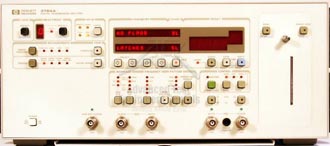

Keysight 3764A Digital Transmission Analyzer

The Keysight 3764A Digital Transmission Analyzer product has been replaced by a new product.

The Keysight 3764A digital transmission analyzer is available in a number of different versions to cover a wide range of telecom and general purpose test applications. Each one offers pattern generation and error detection at coded and binary interfaces, and a HP-IB port for remote control operation.

A version of the 3764A with combined error and Option 002 jitter performance measurements at 140 Mbit/s is ideal for production test of mode to allow jitter to be added to any 140Mbit/s signal passing through the instrument.

Versions of the instrument with CEPT rates from 704 kbit/s to 140 Mbit/s offer a test solution for manufacturing and installation of digital network equipment. Other versions, including a clock synthesizer, offer data generation and error detection at binary interfaces at rates up to 170 Mbit/s

The Keysight 3764A Digital Transmission Analyzer is used for analyzing the error performance of high speed digital transmission systems.

Larger

Features
Specifications
Applications
Options
Accessories
Standards
Media

Features

Dedicated 140 Mb/s digital transmission analyzer with pattern generation, error detection and error analysis capabilities
Error analysis provision includes error performance measurements for testing the proposed Integrated Services Digital Networks (ISDN)
Portable single unit construction
Generator Internal clock 139.264 MHz; offset clocks + and - 15 ppm; external clock 1 kHz to 170 MHz
Generator Data outputs: CMI format at 139.264 Mb/s; Binary RZ or NRZ from 1 kb/s to 170 Mb/s, ECL levels, 75 ohms unbalanced
Receiver Recovered Clock: 139.264 ±3 Mb/s
Receiver Binary Clock: 1 kHz to 170 MHz
Receiver Data Inputs: 75O Terminated mode; Monitor mode; Binary, RZ or NRZ, ECL levels; External Error, ECL levels

Specifications

Options:

001	Provides Pattern generation; Error measurement & analysis at the four main CEPT rates of 2.048 Mbit/s, 8.448 Mbit/s, 34.368 Mbit/s & 139.264 Mbit/s.
002	Provides Pattern generation; Error measurement & analysis: Jitter generation & measurement at 139.264 Mbit/s.
003	Provides three additional Data Outputs which are delayed with respect to the main Data output.
006	Provides Pattern generation; Error measurement & analysis at the five main CEPT rates of 704 kbit/s, 2.048 Mbit/s, 8.448 Mbit/s, 34.368 Mbit/s & 139.264 Mbit/s. The Frequency synthesizer also provides two variable frequency rates from 1 kbit/s to 170 Mbit/s and a selection of fixed and variable frequency Offsets for all available rates.
007	Provides Pattern generation; Error measurement & analysis at 139.264 Mbit/s. The frequency synthesizer also provides two variable frequency rates from 1 kHz to 170 MHz and a selection of fixed and variable frequency Offsets. Jitter generation & measurement is provided at 139.264 MHz only. In addition a THRU Data capability is provided which allows Jitter to be added to, 139.264 Mbit/s CMI Coded Data or 139.264 MHz Binary clock. This Option excludes the Tape Cartridge option (010), and the internal Printer.
010	The internal printer is replaced by a Tape Cartridge Unit. This Option is not possible in conjunction with Option 007
907	Front Handle Kit
908	Rack Flange Kit
909	Rack & Handle Kit
910	Provides a double set of Operating & Service manuals & an Extender card.
915	Provides a Service manual & an Extender card.

Applications

Production testing of digital transmission equipment
Installation and maintenance of digital networks
Demultiplexer testing using through-data mode to add jitter to a structured signal
Long-term unattended monitoring with error performance analysis based on CCITT Recommendation G.821
