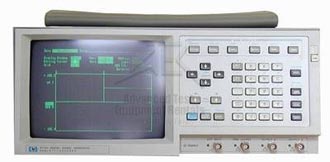

Keysight 8175A with Option 2 Digital Signal Generator

HP/Agilent 8175A-002 Dual Arbitrary Waveform Generator
Enlarge Image
Keysight 8175A-002
Request Quote Print Page
Datasheet
24 Ch Data, 2 Ch Arbitrary, 50Mb/s Digital Pattern Generator

Option 002
  • Number of analog outputs: 2
  • Number of bits: 10
  • Number of data points:
    Horizontal: 970

Keysight 8175A-002 Features
  • Two analog channels / 1 kpoints ea / 50 MHz ea
  • Individual datapoint durations 20 ns to 9.99 s
  • Ten-bit amplitude resolution
  • Digital and analog signals simultaneously
  • Four waveform entry  modes; calculator, graphical editing, abs. and rel. levels, various codings
  • Up to 32 Vp-p output voltage (into open), separately programmable offset (max ± 16 V)
