Keysight E4401B ESA-E Series Spectrum Analyzer

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Agilent E4401B ESA-E Series Spectrum Analyzer

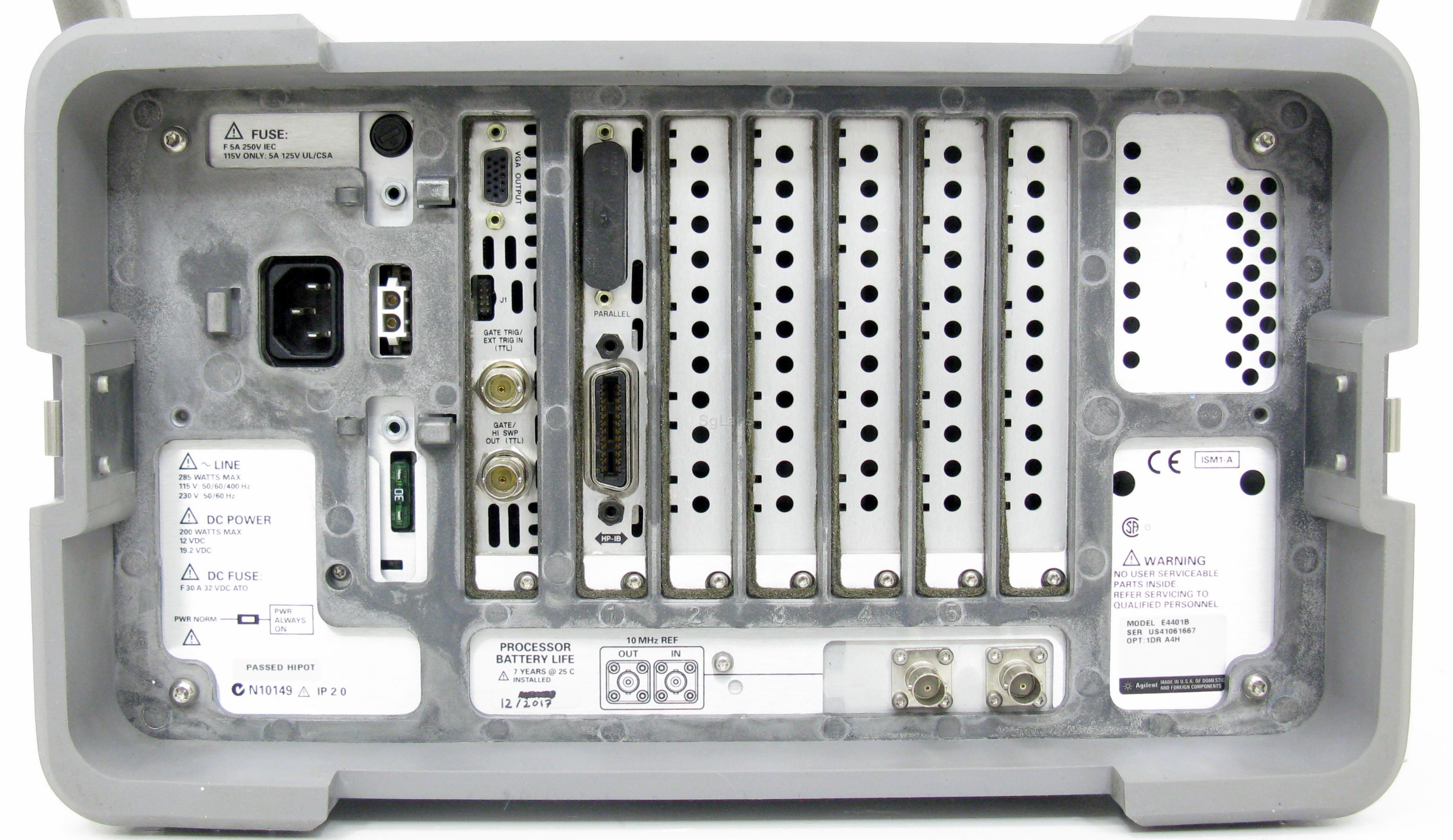

Enlarge Image
Keysight E4401B
Request Quote Print Page
Manual E4401B Datasheet Specifications

The Keysight E4401B ESA-E Series Spectrum Analyzer is Keysight's mid-performance spectrum analyzer solution. The series sets the performance standards in measurement speed, dynamic range, accuracy, and resolving power for similarly priced products. Its flexible platform design enables R&D, manufacturing, and field service engineers to customize the product to meet specific testing needs and to upgrade the product with new features when required.

The products selection of one button measurement solutions combined with its easily navigable user interface and performance in speed allows engineers to spend less time testing and more time designing, building, and trouble shooting components and products.

Keysight E4401B Features
  • Noise Figure Measurement Personality
  • Remotely view and control the ESA over the Internet
  • 8590-series programming code compatibility
  • ESA-E series measurement solutions
  • Fault location, phase noise, and CATV service measurement personalities
  • Rugged and portable for lab grade performance in the field
  • Segmented sweep for up to 32 discontinuous spans in one sweep
  • One-millisecond RF sweep time, 50 measurements per second
  • Rugged lab grade performance for the field
  • ±1 dB overall amplitude accuracy
  • Optional 1 Hz digital resolution bandwidth filter and preamplifier
  • -166 dBm sensitivity with preamp, +13.5 dBm TOI
  • Variable sweep (trace points) from 2 to 8192
  • Free IntuiLink PC software for screen and data transfer
  • BenchLink spectrum analyzer connectivity software
  • 9 kHz to 1.5 GHz
