Keysight E4402B Spectrum Analyzer

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery

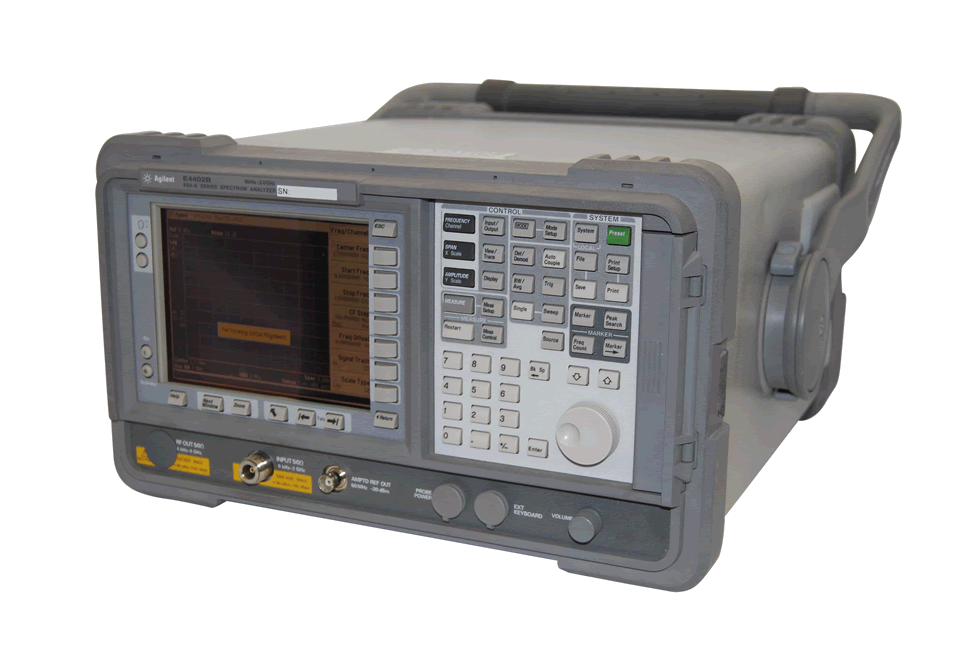

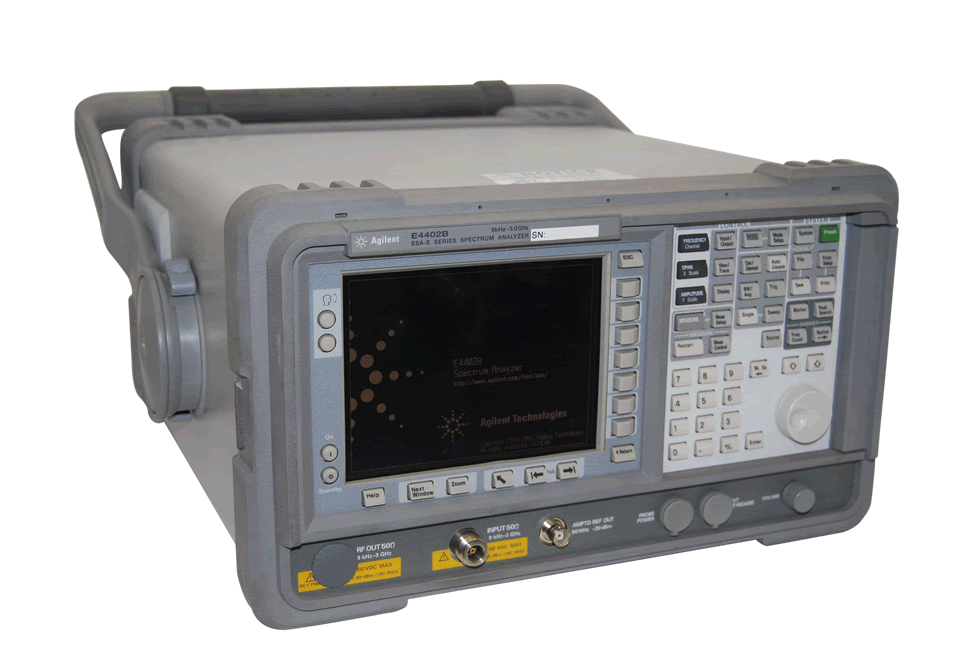

HP/Agilent E4402B Spectrum Analyzer w/opt A4H
Enlarge Image
HP/Agilent E4402B Spectrum Analyzer w/opt A4H HP/Agilent E4402B Spectrum Analyzer w/opt A4H
Keysight E4402B
Request Quote Print Page
Manual E4402B Datasheet Specifications Brochure
The Keysight E4402B ESA-E Spectrum Analyzer and Communication Test Analyzer expands the leading performance and functionality of the ESA standard analyzer with the addition of built-in demodulation hardware. When combined with the communication focused measurement personalities or Keysight VSA software, the E4402B Communication Test Analyzer makes a powerful tool for development of devices for the communications industry.
A4H–GPIB interface, IEEE-488 bus connector
Keysight E4402B Features
  • 0.4 dB overall amplitude accuracy
  • 1 Hz to 5 MHz Resolution Bandwidth (RBW)
  • +16 dBm third order intercept (TOI)
  • -167 dBm displayed average noise level (DANL)
  • Precision frequency reference
  • 10 MHz demodulation bandwidth
  • GSM/GPRS/EDGE, cdmaOne, and flexible modulation analysis measurement personalities
  • Link to the popular Keysight 89601A vector signal analysis software for fully flexible demodulation analysis and in depth trouble shooting tools
  • Integrated measurements for noise figure measurement personality
  • Integrated measurements for phase noise measurement personality
  • Modulation analysis personality
  • CATV field service and analog broadcast personality
  • Programming code compatibility to HP / Agilent 8566 and HP / Agilent 8568
  • Free IntuiLink PC software for screen and data transfer to Microsoft® Office
  • BenchLink spectrum analyzer connectivity software
  • Worldwide support
  • Easy selection
  • Fast delivery
  • SCPI programming and IVI COM driver support
