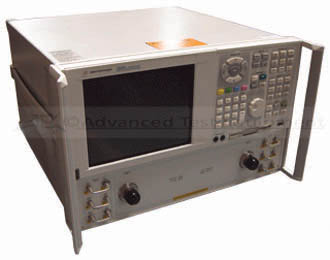

The E8364A vector network analyzer is a member of the PNA Series network analyzer platform and provides the combination of speed and precision for the demanding needs of todays high frequency, high-performance component test requirements. The PNA Series meets these testing challenges by providing the right combination of fast sweep speeds, wide dynamic range, low trace noise and flexible connectivity.
The E8364A provides TRL/LRM calibration (four-receiver enabled) for waveguide, on-wafer, and in-fixture devices. Source attenuators, bias-tees and direct receiver access are optionally available for active device and extended dynamic range measurements.
Powerful automation and self-help tools make the instrument well suited for both R&D and manufacturing. The PNA Series feature sixteen independent measurement channels, built-in hard drive and supplied mouse.
- PNAs now have 256MB RAM
- 45 MHz to 50 GHz
- 123 dB dynamic range at test port
- 138 dB dynamic range with direct receiver access
- 104 dB dynamic range at the test port at 50 GHz
- < 26 us/point sweep speed
- COM/DCOM and SCPI programming
- TRL/LRM calibration supported
