Vanguard UPS-S2 Portable AC/DC Power Supply
- All output power sources are isolated from the primary power input by an isolation transformer.
- Voltage outputs are variable (auto-transformer) via a front panel control knob.
- The primary power input is selectable (120Vac or 240Vac).
Megger TM1800 Circuit Breaker Analyzer
- Modular based design — user configurable TM1800 from nine different modules
- Built in PC with CABA Local Software — advanced testing with predefined breaker test plans (templates), onsite measurement view and analysis
- Dual ground testing using DCM module — increased safety with both sides of breaker grounded
Vanguard CT-7500 S2 Circuit Breaker Analyzer
- On-Line Timing
- Capture First Trip Time
- Full Breaker Tabulated & Graphic Data Printout
OMICRON CIBANO 500 Circuit Breaker Test System
- 3-in-1 system: micro-ohmmeter, powerful AC/DC supply, and timing analyzer
- One system for medium- and high-voltage circuit breakers
- Low wiring effort
Phenix HC-2 Portable High Current Test Set 0 - 70 V, 500 A
- Portability: Compact and lightweight, making it easy to transport and use in various field conditions.
- Current Capability: Provides sufficient current output to test high-capacity electrical systems.
- Versatility: Suitable for testing multiple types of electrical protection equipment.
Megger DDA-1600 Circuit Breaker Test Set
- Portable: Housed in a lightweight, rugged, three-piece chassis that can be carried. This reduces the need for heavy equipment to transport the test set.
- Versatile: Designed to test a wide range of air frame and molded-case circuit breakers. Model DDA-1600 will test airframe circuit breakers rated up to 1600 amperes and molded-case circuit breakers
- Initiating control circuit: Fully digital initiating control circuit provides both pulsed and maintained control modes of output duration.

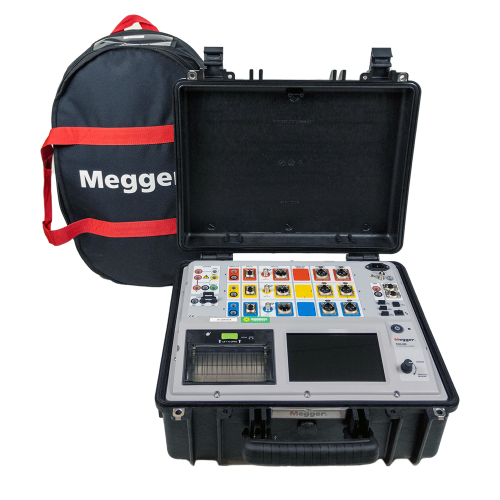

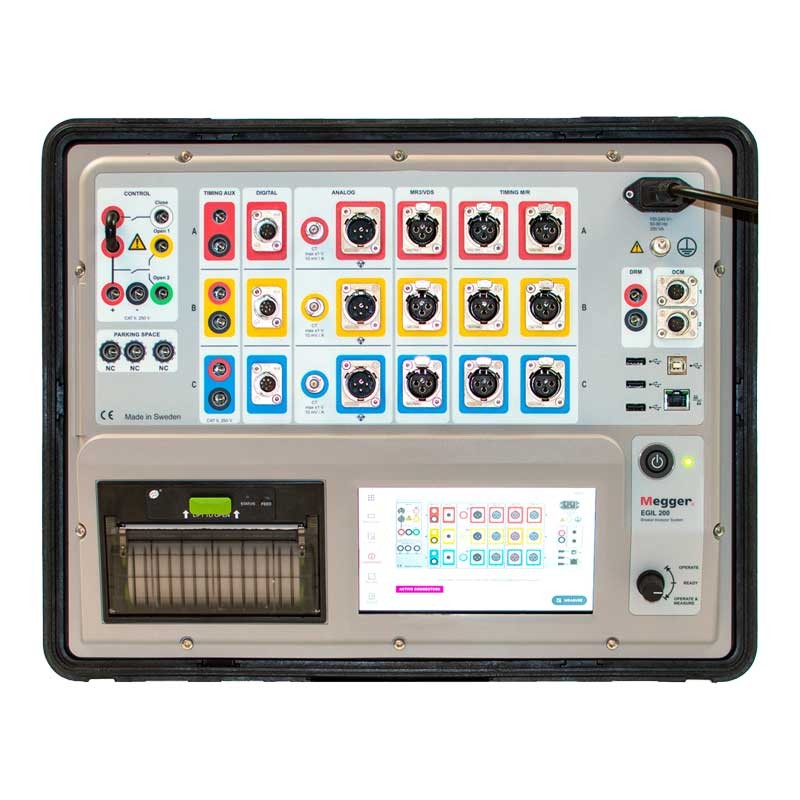

Megger EGIL Circuit Breaker Analyzer
- Suitable for testing timing and travel on all circuit breakers with single interrupter per phase
- Extremely easy-to-use and reliable
- Two separate timing channels for measurement of auxiliary contacts
Megger TM1600 Circuit Breaker Analyzer
- Stand-alone functionality – one toolbox for all breaker testing
- Expandable modular concept
- Low-weight
Vanguard CT-7000 S3 Digital Circuit Breaker Analyzer
- Circuit breaker analyzer with 3 or 6 contact timing channels
- OPEN/CLOSE coil current monitoring
- Built-in 4.5" wide thermal printer
Megger DDA-6000 Universal Circuit Breaker Test Set
- Initiating control circuit
- Zero dc offset
- Compact enclosure
Vanguard CT-8000 S3 Micro Ohmmeter
- Dynamic Contact Resistance
- Voltage Monitoring Channels
- Contact Timing Input Channels
