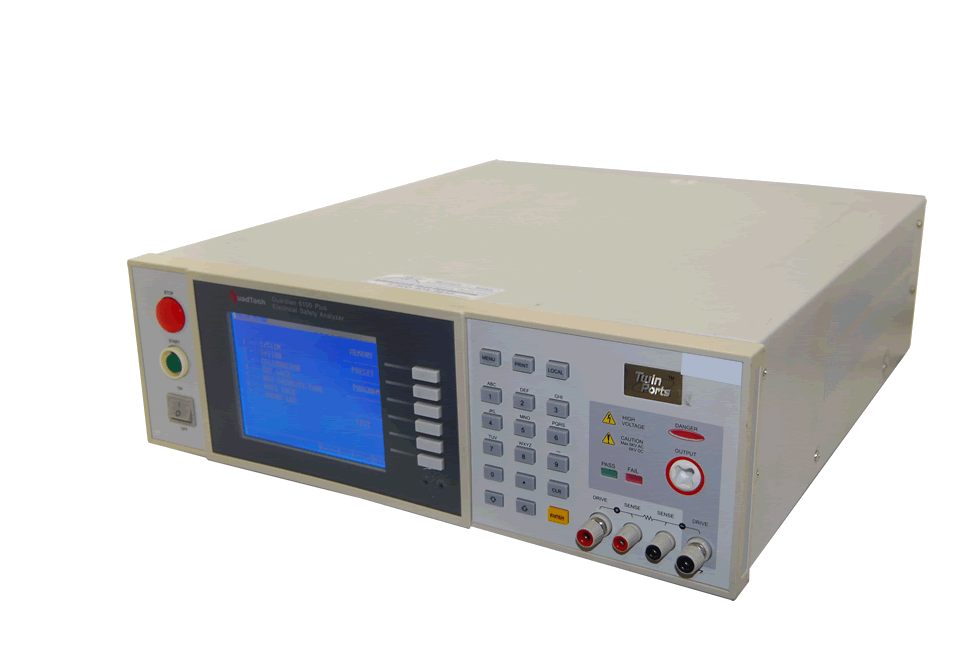

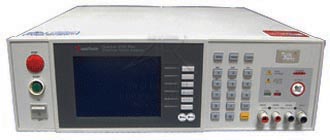

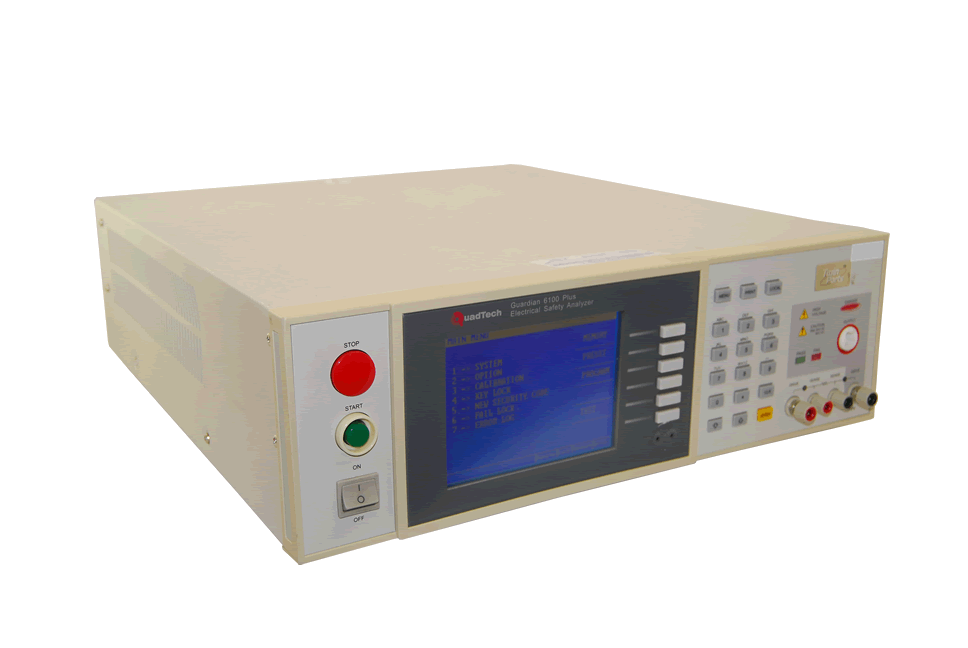

Quadtech Guardian 6100 Plus Safety Analyzer
Enlarge Image
Quadtech Guardian 6100 Plus Safety Analyzer Quadtech Guardian 6100 Plus Safety Analyzer Quadtech Guardian 6100 Plus Safety Analyzer
Quadtech Guardian 6100 Plus
Request Quote Print Page
Manual Guardian 6100 Plus Datasheet Accessory Kit
The Quadtech Guardian 6100 Plus is the industry's first production safety analyzer with simultaneous Hipot and Ground Bond capability providing a dramatic savings in test time. Six instruments in one, the Guardian 6100 Plus provides AC Hipot, DC Hipot, Insulation Resistance, Leakage Current / Functional Run, Ground Bond and Open / Short measurements from a single test connection. Versatile and packed with features, the Guardian 6100 Plus is a cost effective solution for the full spectrum of electrical safety compliance testing.
Quadtech Guardian 6100 Plus Features
  • Twin Port - Simultaneous Hipot & GB
  • Built-in 20A Hipot/Line Leakage Scanner
  • Output Voltage to 5 kV AC and 6kV DC
  • Ground Bond Testing to 30A AC (to 40A with Optional Transformer)
  • Insulation Resistance Measurements from 100 kohms to 50 Gohms
  • Earth, Enclosure & Patient Line Leakage Current Measurements to 9.999 mA
  • Open/Short Circuit Detection Mode
  • Pause Mode with Message Capability
  • Continuous Leakage Current Monitoring
  • Programmable Trip Current to 40 mA AC and 12 mA DC
  • Programmable Ramp, Dwell & Test Times
  • Storage of 100 Test Setups, 50 Steps Each
  • Front Panel Lockout via Password
  • Standard RS-232 & Remote I/O Interfaces
  • Optional IEEE-488, Printer Interfaces
  • Optional CaptivATE Automation Software for Guardian 6100 Plus
