Solmetric PVA-600 PV Analyzer
Enlarge Image

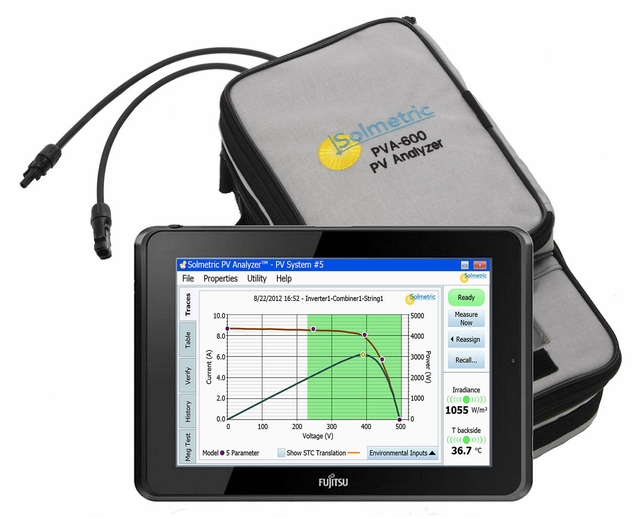

Solmetric PVA-600
Request Quote Print Page
Manual PVA-600 Datasheet
The Solmetric PV Analyzer is a complete electrical test solution for verifying photovoltaic array performance. For each string, the analyzer measures current and power as a function of voltage. Measured results are compared to the performance predicted by advanced built-in models.
Solmetric PVA-600 Features
  • One electrical connection
  • One measurement
  • Complete performance verification
  • Commission new PV arrays with confidence
  • Troubleshoot arrays quickly
  • Demonstrate fulfillment of contract obligations
  • Record an array performance baseline
  • I-V curve tracing
  • Built-in predictive models for performance evaluation
  • Irradiance and temperature measurement options
  • Wireless convenience and flexibility
  • 600V, 20A
Solmetric PVA-600 Specs
PV voltage measurement range 0–600 V DC
PV current measurement range 0–20 A DC
Recommended minimum Voc 20 V DC
I-V measurement cycle time 4s (typical)
I-V measurement time (I-V sweep) 80–240 ms
Measurement points per trace 100 (typical)
Ambient operating temperature range 0 to +50 deg C
Storage temperature -20 to +60 deg C
Battery life (continuous operation) 12 hours between charges
Charging time 6 hours
Safety IEC-61010, CAT III, 600 V
Protection Over-voltage, over-current, over-temperature
