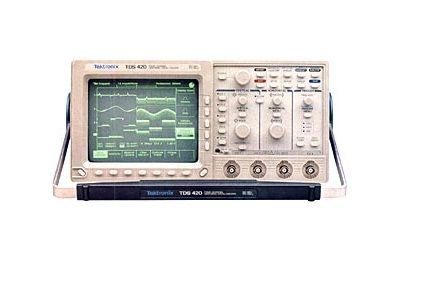

Tektronix TDS420 Digitizing Oscilloscope 150 MHz, 100Ms/s

Rent Tektronix TDS420 Digitizing Oscilloscope 150 MHz, 100Ms/s
Enlarge Image
Tektronix Test Equipment TDS420
Request Quote Print Page
Manual Datasheet

Display


  • Waveform Style - Dots or vectors. Infinite and variable persistence from 250 ms to 10s.
  • Gray Scaling
  • Update Rate - 200 ea. 500 point waveforms per sec with infinite persistence mode selected.
  • Graticules - Full, grid, cross hair, frame
  • Format - YT and XY
  • VGA Out - Drives VGA display monitors.
  • Zoom -  The zoom feature allows waveforms to be expanded, compressed and positioned in both vertical and horizontal axes.




Measurement System

Automatic Waveform Measurements

Period Frequency
High Low
+ Width - Width
Maximum Minimum
Rise Fall
Peak to Peak Amplitude
+ Duty Cycle - Duty Cycle
+ Overshoot - Overshoot
Propagation Delay Burst Width
Mean Cycle Mean
RMS Cycle RMS
Area Cycle Area

Phase


Continuous update of up to four measurements on any combination of waveforms.


Signal Acquisition System



  • Bandwidth - 150 MHz
  • Channels - 4
  • Digitizers - 4
  • Sample Rate - 100 MS/s on all channels
  • Sensitivity - 1 mV to 10 V/div
  • Position Range - ± 5 Divisions
  • Vertical Resolution - 8-bits (256 levels over 10.24 vertical divisions).
  • Analog Bandwidth Selections - 20 MHz, 100 MHz, and full.
  • Input Coupling - AC, DC, or GND
  • Input Impedance Selections - 1 M ohms in parallel with 15 pF, or 50 ohms (AC and DC coupling).
  • Maximum Input Voltage - ± 400 V (DC + peak AC).



Acquisition Modes


  • Peak Detect
  • Sample
  • Envelope
  • Average
  • Hi-Res



Time Base System


  • Time Bases - Main, Delayed
  • Time/Division Range - 1 ns to 20 s/div
  • Record Length (real time and equivalent time) - Sample points per channel:  500 to 15,0000, Opt. 1M offers 60,000 points.
  • Pre-Trigger Position - Selectable from 0 to 100% of record.



Triggering System


  • Triggers - Main, Delayed.
  • Main Trigger Modes - Auto, Normal, Single Sequence.
  • Delayed Trigger - Delayed by time or events.
  • Time Delay Range - 0 ns to 20 s.
  • Events Delay Range - 2 to 10,000,000 events.
  • Video Trigger Types - NTSC, PAL, SECAM, and Custom; TV Field, field 2 or both. Option 05 includes a Video Clamp Pod.
