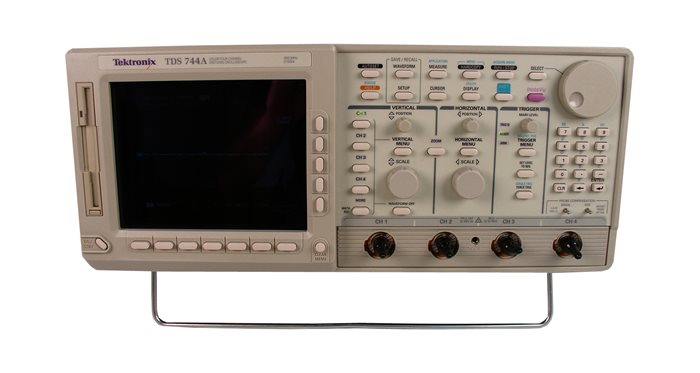

Tektronix TDS744A 4 Channel 500 MHz 2Gs/s Digitizing Oscilloscope

Tektronix TDS744A 4 Channel 500 MHz 2Gs/s Digitizing Oscilloscope
Enlarge Image
Tektronix Test Equipment TDS744A
Request Quote Print Page
Manual Datasheet Specifications
Probes (standard)
4 P6139A Passive probes - 10 X, 8 pF, 500 MHz

Tektronix Test Equipment TDS744A Specs
Signal Acquisition System

  • Channels: 4
  • Samplers: 4
  • Bandwidth: 500 MHz
  • Maximum Sample Rate
    • 1 Channel: 2 GS/s
    • 2 Channels: 1 GS/s
    • 3, 4 Channels: 500 MS/s

Maximum Record Length - Standard
* 1 Channel: 50,000 pts
* 2 Channels: 50,000 pts
* 3, 4 Channels: 50,000 pts


Time Base System

  • Time Bases: Main, Delayed
  • Time/Division Range: 500 ps to 10 s/div



Vertical System

  • Vertical Resolution: 8-bits (256 levels over 10.24 vertical divisions), >13-bits with Hi-Res, 11-bits with averaging
  • Analog Bandwidth Selections: 20 MHz, 100 MHz, and full
  • Input Coupling: AC, DC, or GND
  • Input Impedance Selections: 1 M ohms in parallel with 10 pF, or 50 ohms (AC and DC coupling)
  • Sensitivity: 1 mV to 10 V/div

Display: Monitor - 7 in. NuColor liquid crystal full-color shutter, 256 levels.




Measurement System

  • Automatic Measurements: 25
  • Cursors Measurements: Absolute, Delta; volts, time, frequency. NTSC IRE units and line number with video trigger option



Waveform Processing

  • Waveform Functions: Interpolation (sin(x)/x or linear), Average, Envelope, Autosetup
  • Advanced Waveform Functions: FFT, Integration, Differentiation, Waveform (math or acquired) Limit Testing
  • Arithmetic Operations: Add, Subtract, Multiply, Divide, Invert



Hardcopy/Desktop Publishing

  • Hardcopy Ports: GPIB, RS-232, Centronics
  • Hardcopy Formats: Epson, ThinkJet, DeskJet, LaserJet, PostScript, TIFF, PCX, BMP, DPU 411/412, RLE, HPGL, Interleaf
  • Floppy Drive: 3.5" 1.44 MB or 720 kB DOS compatible



Data Formats: MathCad and spreadsheet

Computer Interface

  • GPIB (IEEE 488.2) - Full Programmability
  • Auxiliary Inputs/Outputs - Video output (15-Pin VGA, full color); External Trigger input; Main and Delay Trigger outputs; CH3 Signal output
