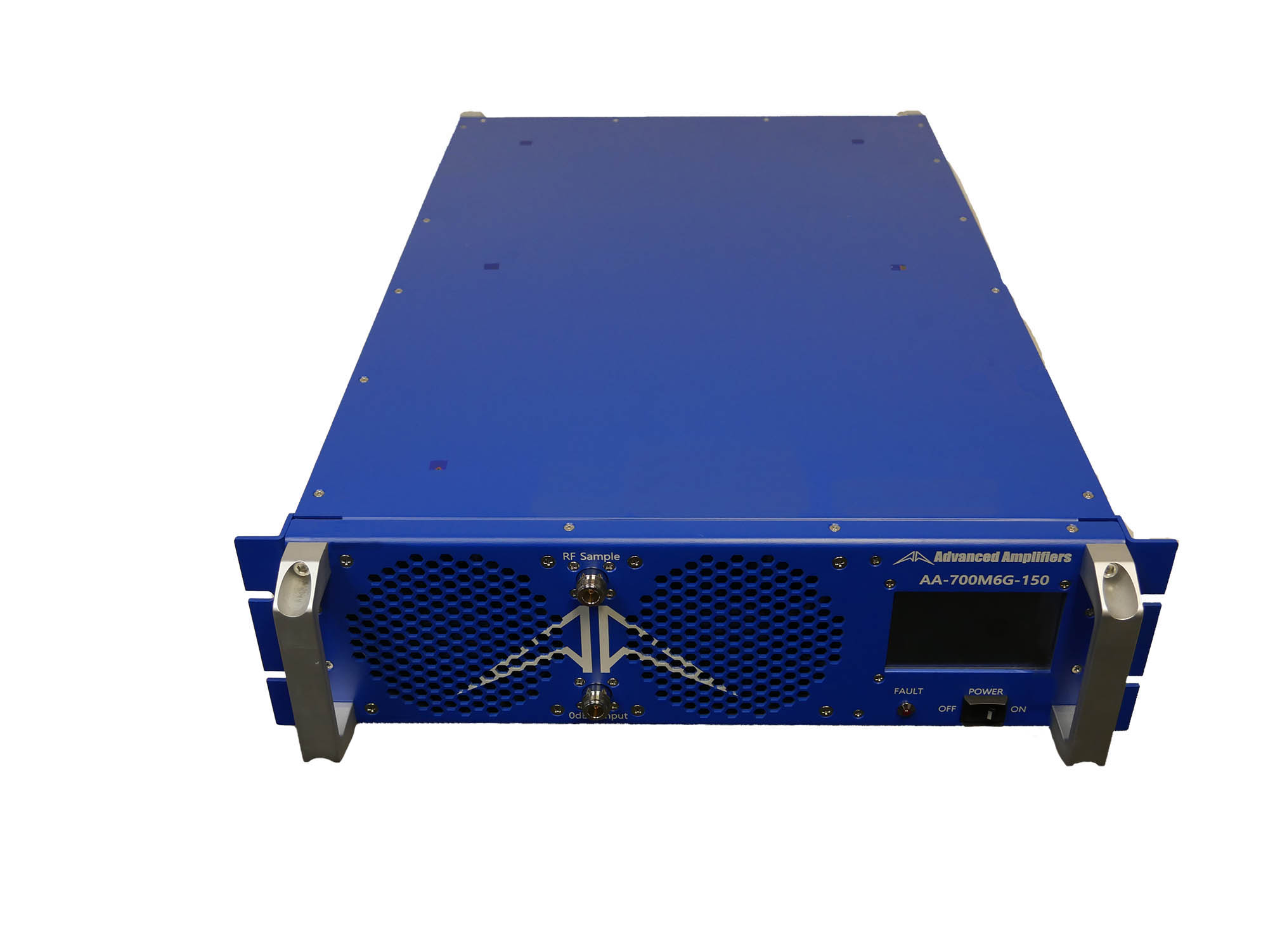

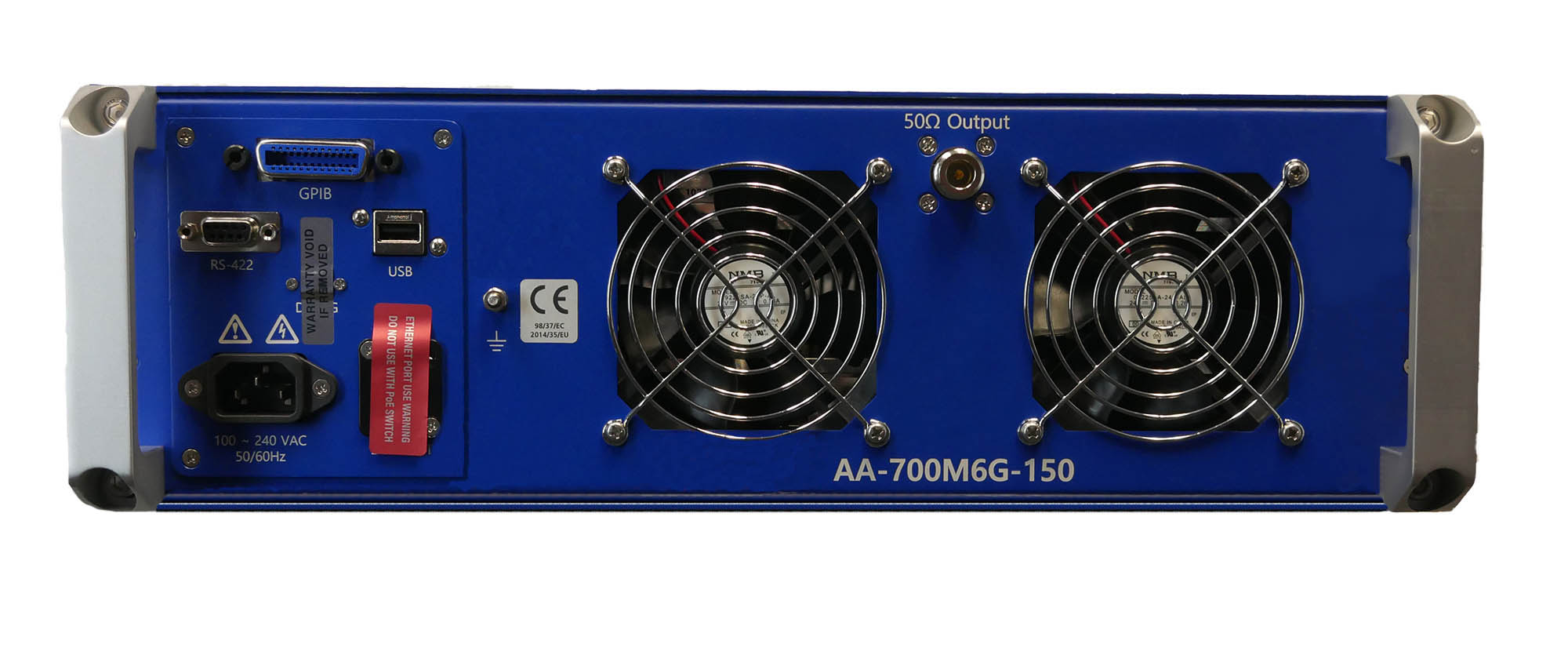

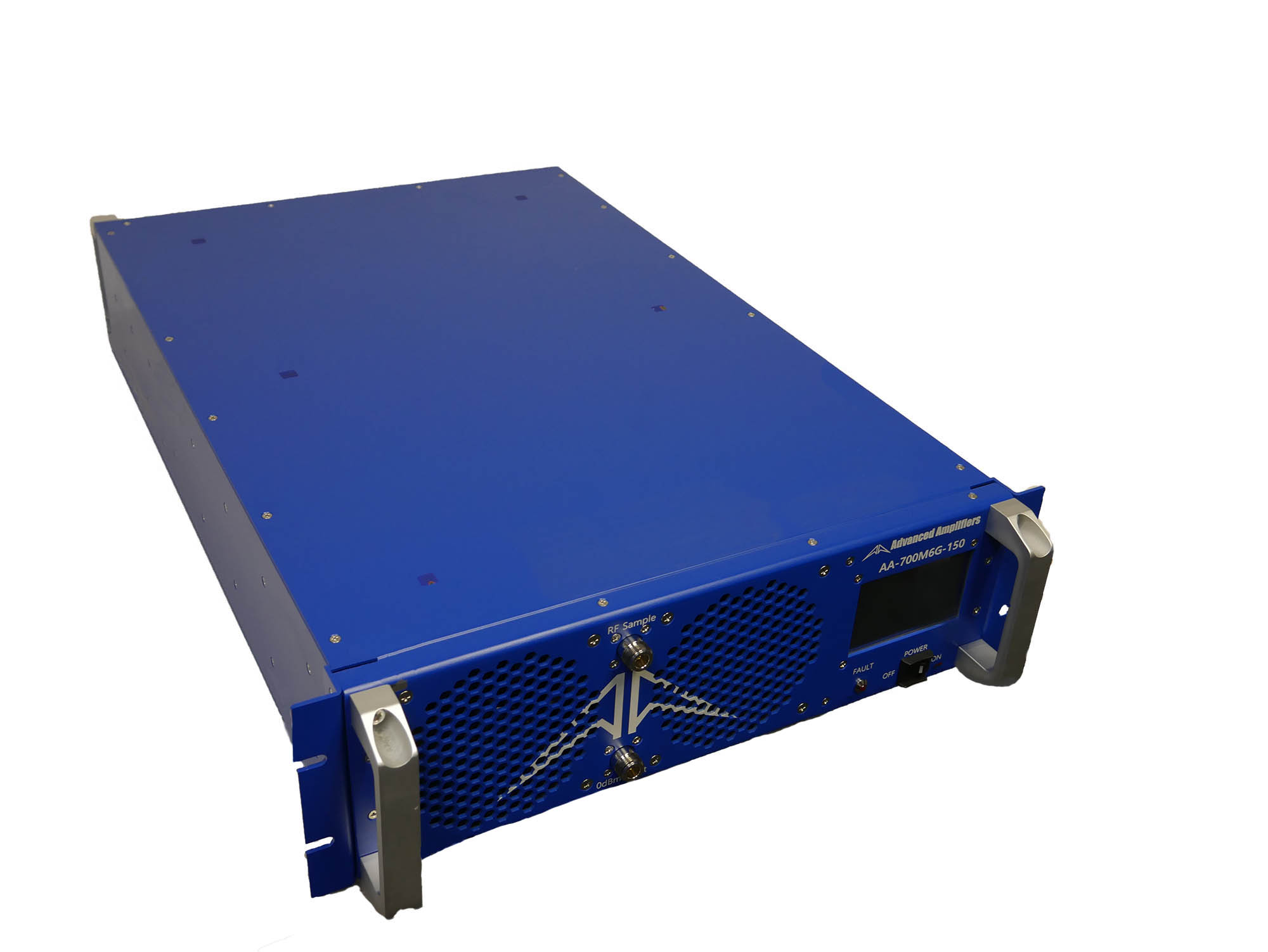

Advanced Amplifiers AA-700M6G-150 Solid State High Power Amplifier
Tech Support
(800) 404-2832
With Every
Rental
Worldwide
Delivery
Larger
Categories
RF Amplifiers
Solid State Power Amplifiers
CW Amplifiers
Documents
Datasheet
Print
Email
The Advanced Amplifiers AA-700M6G-150 is a solid-state, high-power amplifier with an instantaneous ultra-wide bandwidth that's ideal for EMI and RFI applications. The AA-700M6G-150 solid state amplifier promises a wide frequency range from 1 to 6 GHz and a continuous wave (CW) or pulse power output that reaches 150 watts. The Advanced Amplifiers device guarantees safe usage thanks to built-in protection circuits with extensive monitoring. A local LCD screen and remote flexible interfaces create a user-friendly experience, along with a small form factor that's easy to move throughout a lab. The Advanced Amplifiers AA-700M6G-150 Solid State High Power Amplifier promises high efficiency and reliability in a highly durable model.
Specifications
Features
Applications
Options
Accessories
Standards
Videos
Features
Designed for EMI/RFI, lab, CW/Pulse and all communication applications
Small form factor, rack mounted system
Class A/AB Linear design
High Power Advanced technology devices
Instantaneous ultra-wide bandwidth
Built-in protection circuits, with extensive monitoring
Local LCD & remote flexible interfaces
High efficiency, with unprecedented reliability and ruggedness
Specifications
Electrical Specifications
Parameter
Specification
Notes
Operating Frequency Range
1.0 - 6.0 GHz
Power Output @ Psat
150 Watt Min
CW or Pulse
Power Output @ P1dB
100 Watt Min
Power Gain
52 dB Min
0 dBm or less for Rated Power
Gain Adjustment Range
20 dB Min
Local or remote capable
Power Gain Flatness
4 dB p-p Max
Constant input power
Input / Output Return Loss
-10 dB Max
2-Tone Intermodulation (IMD)
-30 dBc Typ
42dBm/Tone, Δ = 1MHz
Harmonics
-20 dBc Typ
At rated output
Spurious
-60 dBc Max
Non-harmonic
Operating Voltage
100 - 240 VAC
47 - 63 Hz
Power Consumption
1500 Watt Max
At rated output
Input Power Protection
+10 dBm Max
Load VSWR Protection
4:1: Max
Foldback @ preset limit
Sample Port
-50 dB
N-Female
Environmental Characteristics
Parameter
Specification
Notes
Operating Ambient Temperature
0 to +50 °C
Storage Temperature
-40 to +85 °C
Relative Humidity
Up to 95%
Non-condensing
Altitude
3000 meters
Shock & Vibration
Normal Transport
Applications
Options
Accessories
Standards
Media
RELATED PRODUCTS
Amplifier Research 750S1G6 Solid State RF Amplifier
IFI T2618-50 Millimeter TWT Amplifier, 18 - 26.5GHz, 50Watt
Advanced Amplifiers AA-28G-400 Solid State CW/Pulse Amplifier | 2.0 to 8.0 GHz, 400 W
Amplifier Research 2500A225 RF Power Amplifier 2500 Watt CW, 10 kHz – 225 MHz
IFI T251-500A TWT Amplifier 1 GHz - 2.5 GHz, 500 Watt
Amplifier Research 2500A225 RF Power Amplifier 2500 Watt CW, 10 kHz – 225 MHz
Empower 2208 Solid State Pulse Amplifier 1 - 2 GHz, 8kW
IFI SMC1500 Solid State Amplifier 80 - 1000MHz, 1500W
Amplifier Research 2500A225 RF Power Amplifier 2500 Watt CW, 10 kHz – 225 MHz
IFI SMC1500 Solid State Amplifier 80 - 1000MHz, 1500W
Amplifier Research 250S1G6 Solid State Amplifier, 700MHz - 6 GHz, 250 Watts
Amplifier Research 3500A100 Solid-State Amplifier
Prana DR 5000 C Solid State RF Amplifier | 9 kHz - 250 MHz, 5000 W
Advanced Amplifiers AA-2.58G-2KW-PT Pulsed TWT Amplifier | 2.5 - 8.0 GHz, 2 kW
Amplifier Research 150W1000B CW Solid State Amplifier, 80MHz-1000 MHz, 150 Watts
AE Techron 7228 Linear Power Amplifier, 100kHz - 1MHz, 1000 Watts
Advanced Amplifiers AA-618G-40 Solid State Amplifier | 6.0 - 18.0 GHz, 40 W
Prana LT 320 D Solid State Amplifier | 20 MHz - 1000 MHz, 320 W
Advanced Amplifiers AA-2640G-40 Solid State Amplifier | 26 - 40 GHz, 40 W
Advanced Amplifiers AA-1826G-40 Solid State Amplifier | 18 - 26.5 GHz, 40 W
Empower 2162 Solid State High Power Amplifier 20 MHz - 1000 MHz, 1000 W
Amplifier Research 5000A225C Solid-State Amplifier
Empower 2198 Solid State Amplifier 20 MHz - 6 GHz, 100 W
Amplifier Research 60S1G6 Microwave Solid State Amplifier 0.7 - 6.0 GHz, 60W
AE Techron 7224 Power Amplifier | DC - 300kHz, 900VA
With Every
