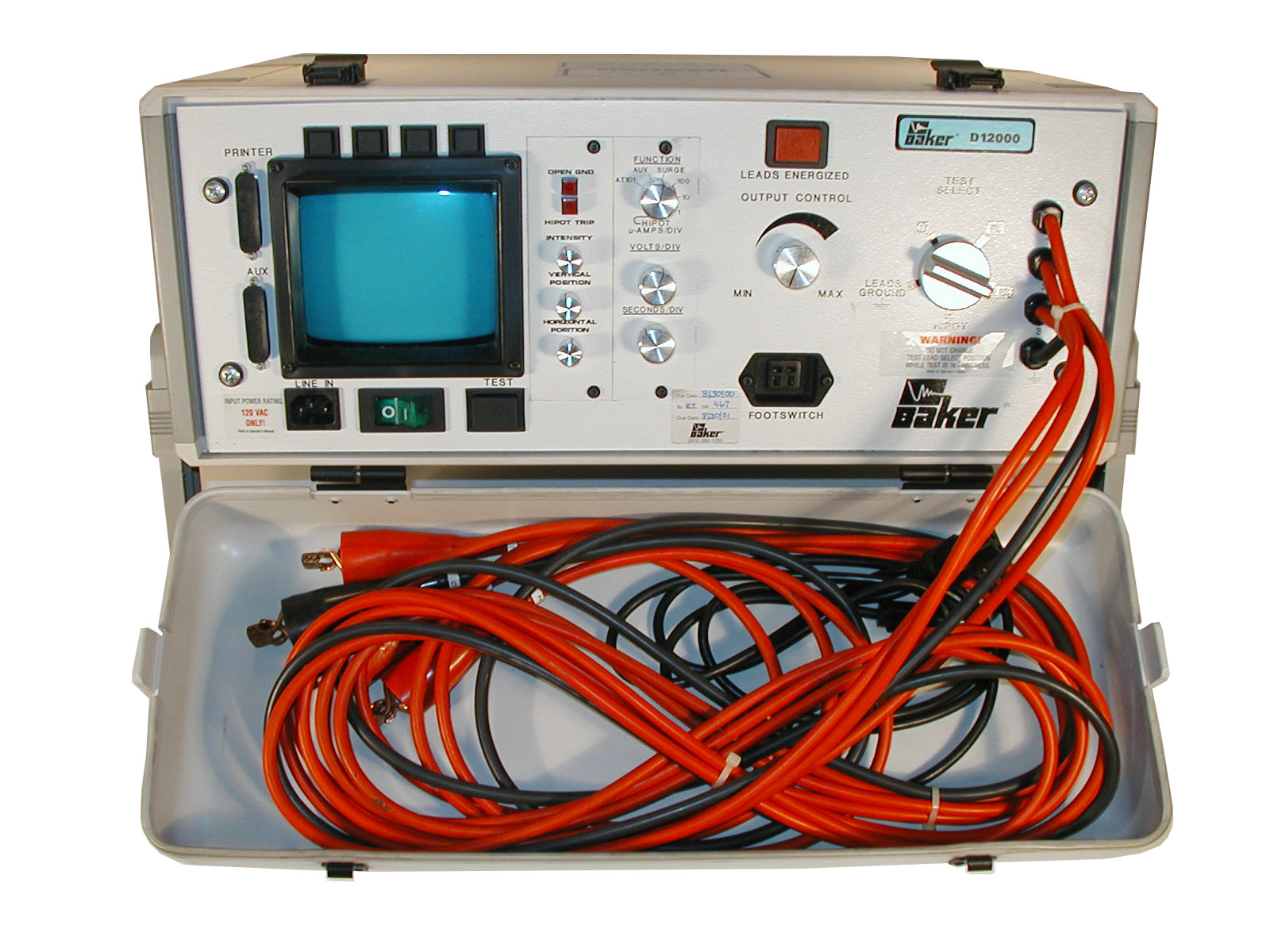

Baker D12000 Surge/High Potential Tester

Baker D12000 Surge/High Potential Tester
Enlarge Image
Baker Instruments D12000
Request Quote Print Page
Datasheet
12 kV Surge / High Potential Tester

Baker Instruments D12000 Features
  • Storage of test data for up to 10 motors
    • 3 Surge Wave Patterns with Amplitude and Timebase
    • Surge Test Peak Voltage Amplitude
    • DC Hipot Voltage
    • DC Hipot Leakage Current
    • Insulation Resistance
  • Zero start interlock for tester High Voltage Output
  • Test leads insulated to 45 KV rating
  • Parallel printer and PC interface
Baker Instruments D12000 Specs
Surge Test Max. Output Voltage: 12 kV
Max. Output Current: 800 A
Max. Pulse Energy: 2.88 joules
DC High Potential Test Max. Output Voltage: 12 kV
Max. Output Current: 1000 µA
Overcurrent Trip: 10/100/1000 µA
Current Resolution: 1/10/100 µA per division
Physical Dimension and Weight Dimensions: 19" W x 8" H x 23" D
Weight: 22.7 kg (50 lbs.)
