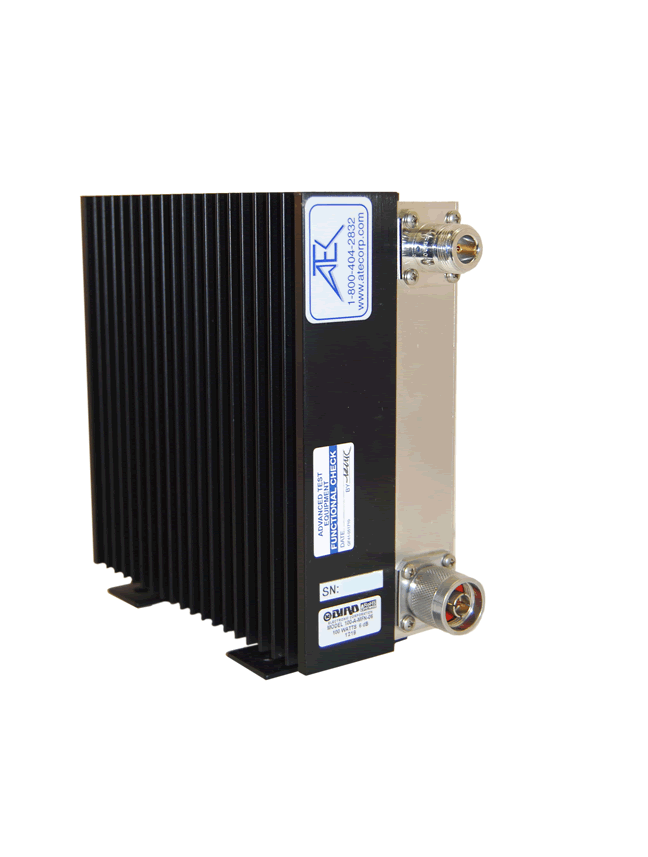

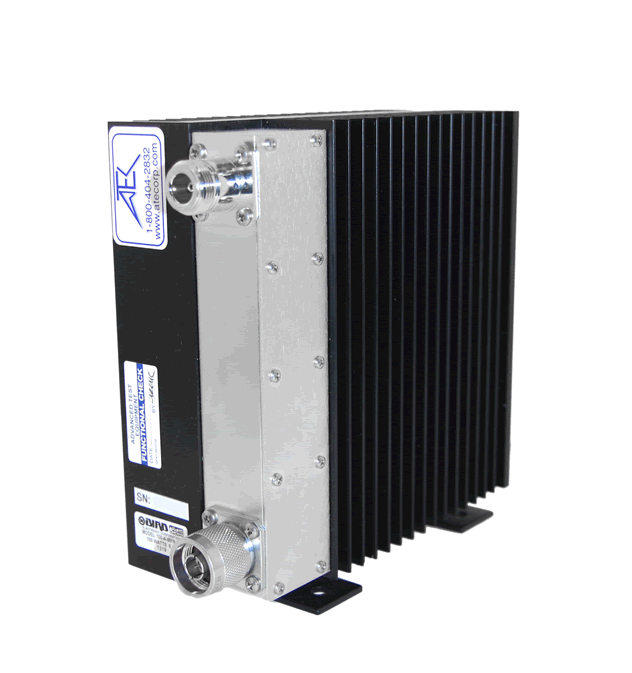

Bird 100-A-MFN-06 Attenuator, 100W

Bird 100-A-MFN-06 Attenuator, 100W
Bird 100-A-MFN-06 Attenuator, 100W Bird 100-A-MFN-06 Attenuator, 100W
Request Quote Print Page
Other1

Features:

  • Impedance: 50 ohms, nominal
  • Coolant Type: Dry (convection cooled)
  • Ambient Temperature Range: -40°C to +40°C
  • Operating Position: Vertical



Specifications:

Attenuation Accuracy DC to 1 GHz: ±0.4 dB
1 GHz to Maximum Frequency: ±0.6 dB
Power 100 W @ 40°C
120 W @ 25°C
Freq @ Max VSWR DC-1 GHz @ 1.10:1
DC - 2.4 GHz @ 1.25:1
Connectors N Type
Dimensions 6.4" x 2.6" x 6.8" (H x W x D x)
Weight 4.3 lbs. (1.95 kg.)
