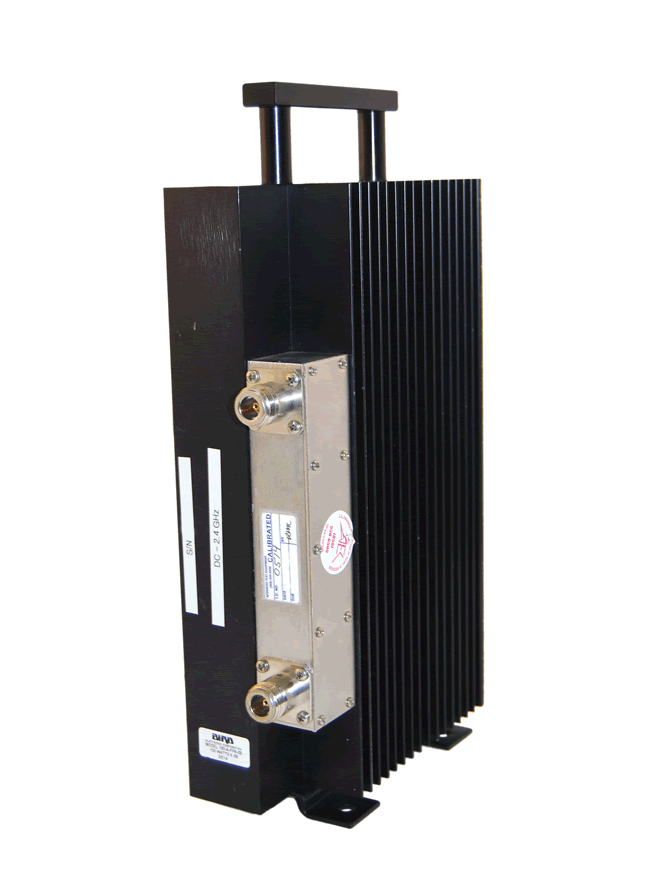

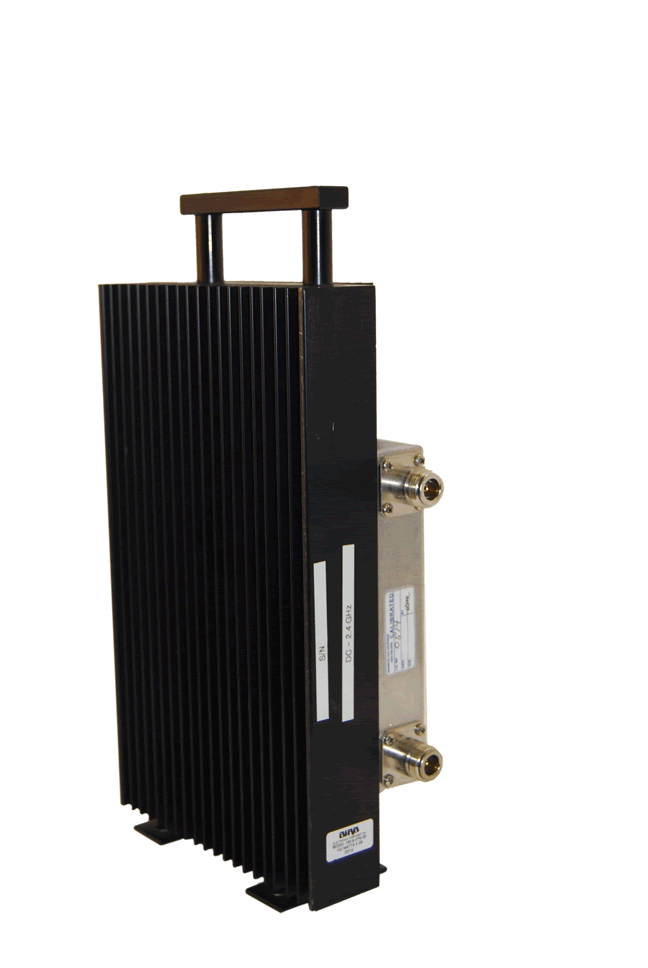

Bird 150-A Bi-Directional Attenuator

Bird 150-A Bi-Directional Attenuator
Enlarge Image
Bird 150-A Bi-Directional Attenuator Bird 150-A Bi-Directional Attenuator
Bird Technologies 150-A
Request Quote Print Page
Other2
Bi-Directional Attenuator, 150 Watts

Bird Technologies 150-A Features
  • Impedance: 50 ohms, nominal
  • Coolant Type: Dry
  • Convection-cooled for quiet, maintenance-free operation.
  • Ambient Temperature Range: -40°C to +40°C
  • Operating Position: Vertical
  • Input: Female
Bird Technologies 150-A Specs
Power 150 W @ 40°C
180 W @ 25°C
Freq. & Max. VSWR DC - 1 GHz @ 1.10:1
DC - 2.4 GHz @ 1.25:1
Connector Options BNC, N, TNC, IEC 7/16
