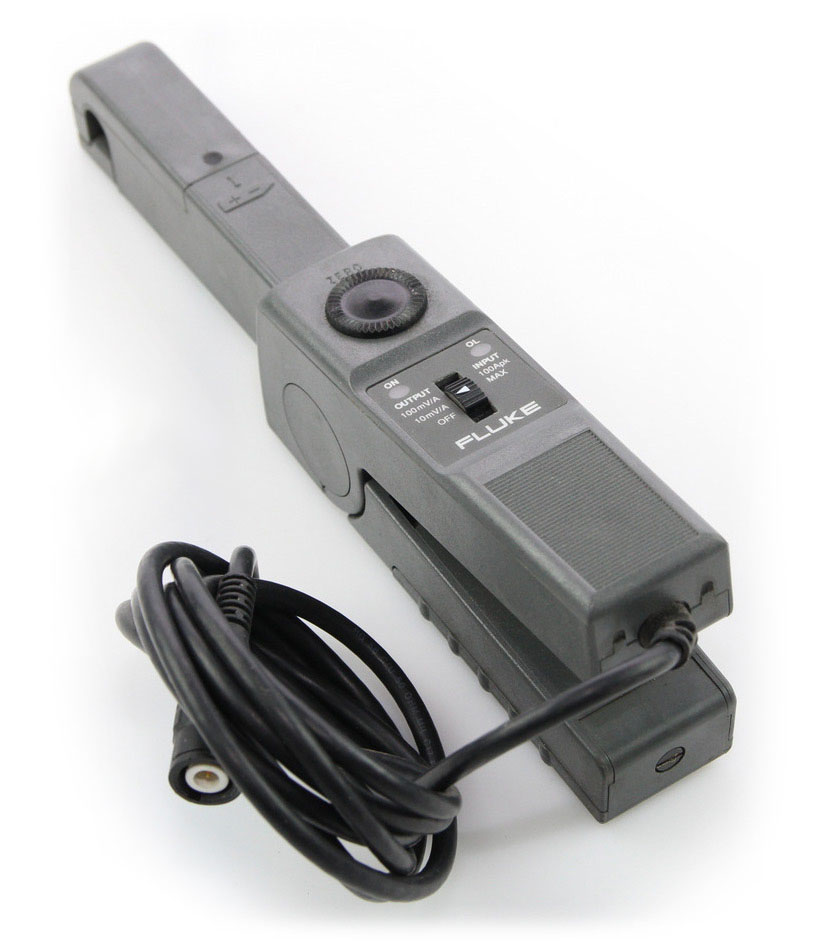

- Current Ranges:
- 0 to 10A DC or AC peak
- 0 to 100A DC or AC peak
- Output Signals:
- 10A range: 100 mV/A
- 100A range: 10 mV/A
- Working Voltage (clamp to ground): 300V or 600V AC RMS
- Floating Voltage (output cable to ground): 300V or 600V AC RMS
- Frequency Range: 1 to 20 kHz
- Impedance: >1 MW up to 100 pF
- Useful Bandwidth (-3 dB): 0 to 100 kHz
- Rise or Fall Time: <4 msec.
- Output Noise Level:
- 10 mV/A typ. 480 mV pk-pk
- 100 mV/A typ. 3 mV pk-pk
- Max. Non Destructive Current:
- 0 to 2 kHz: 140A peak
- 2 to 10 kHz: 11A peak
- 10 to 20 kHz: 70A peak
- 20 to 50 kHz: 30A peak
- 50 to100 kHz: 20A peak
Basic Accuracy (DC to 1kHz):
- Input Current: 0 to 10A
- Output: 100 mV/A
- Error: <3% of reading +50 mA
- Input Current: 0 to 40A
- Output: 10 mV/A
- Error: <4% of reading +50 mA
- Input Current: 40 to 80A
- Output: 10 mV/A
- Error: <12% of reading +50 mA
- Input Current: 80 to 100A
- Output: 10 mV/A
- Error: <15% of reading
