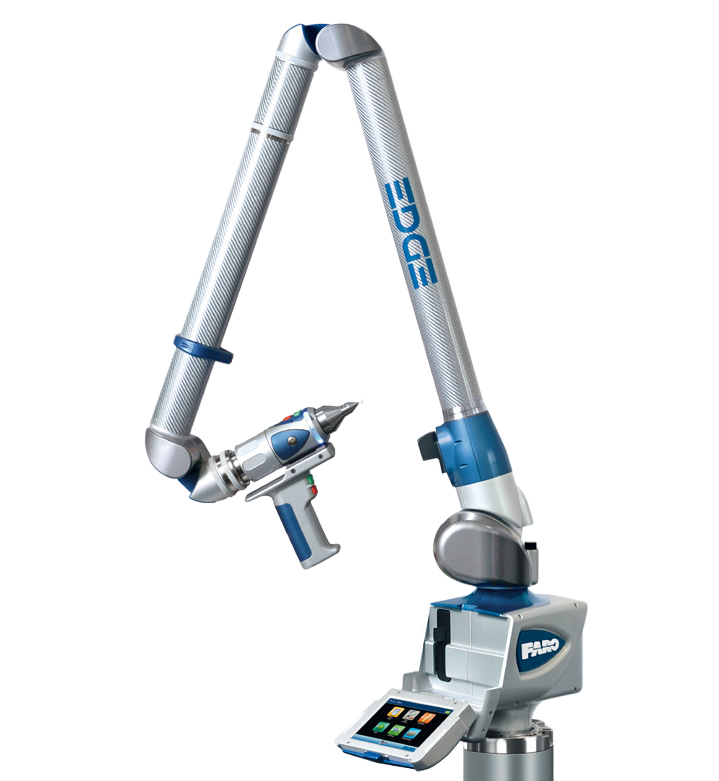

FARO Edge ScanArm CMM

The FARO Edge is a portable 7-axis measurement arm with an integrated touchscreen and onboard operating system for standalone use. It offers measurement ranges of 1.8 m, 2.7 m, and 3.7 m with repeatability from 0.024 mm to 0.064 mm and accuracy from ±0.034 mm to ±0.091 mm. The system supports multiple probes, includes Bluetooth, WLAN, USB, and Ethernet connectivity, and features smart sensors for thermal variation correction and setup diagnostics.

ATEC offers the 3.7 m model of the FARO Edge.

Product Info Related Products

Measurement Range	3.7 m (12 ft)
Repeatability	0.064 mm (0.0025 in)
Accuracy	±0.091 mm (±0.0035 in)
Weight	11.3 kg (24.9 lbs)
Axes	7-axis arm
Connectivity	Bluetooth, WLAN, USB, Ethernet
Probes	Standard touch probes, FARO iProbes, custom probes
Smart Features	Onboard touchscreen, smart sensor technology, multi-function handle port, onboard diagnostics
Operating Temperature	10 °C – 40 °C (50 °F – 104 °F)
Humidity	Up to 95%, non-condensing
Power Supply	85–245 VAC, 50/60 Hz

Integrated touchscreen for standalone measurement without a laptop
Smart Sensor Technology to correct for thermal variations, external loads, and setup issues
Improved ergonomics with balanced weight distribution to reduce user fatigue
Smart Multi-Function Handle Port for quick accessory changes
Multi-probe compatibility (standard touch, FARO iProbes, custom probes)
Connectivity options: Bluetooth, WLAN, USB, Ethernet
Onboard diagnostics and guided measurement routines
