Vision Engineering TVM35 Field of View Video Measuring System
Quote Add-Ons
Automated X-Y Stage
Details
Z-Axis Encoder Kit
Details
Tech Support
(800) 404-2832
With Every
Rental
Worldwide
Delivery
Larger
Categories
CMMs
Documents
Datasheet
Print
Email

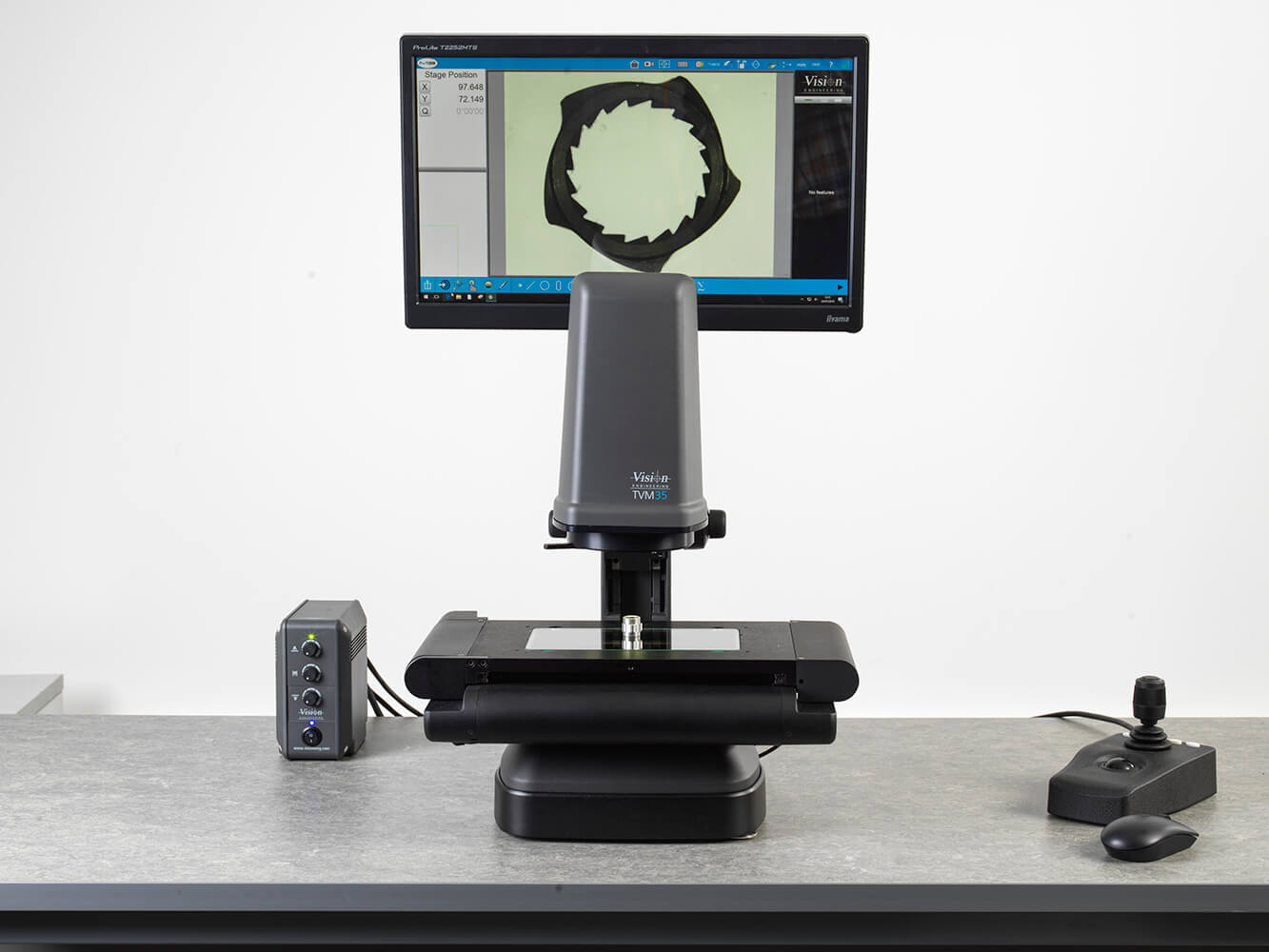

The TVM35 is a digital measuring microscope from Vision Engineering that encompasses non-contact measuring, advanced software, and user-friendly functionality into a sleek and optical design. TVM35 boasts an impressive 28 mm x 21mm field of view, allowing it to measure components of virtually any shape in seconds. Integrated with Vison Engineering's M3measurement software, the TVM35 requires very minimal training. The measuring system is perfect for a variety of applications such as automotive, plastics, medical devices, electronics, and precision engineering.
The TVM35 is the second edition model apart of Vison Engineering's TVM-Series.
Specifications
Features
Applications
Options
Accessories
Standards
Videos
Features
Large field of view for quick throughput
Motorized stage allows measurement of larger objects
Flat field telecentric optics & illumination
Compact, space-saving design
Go, No Go technology with full geometric tolerancing
Measure flat, square. or cylindrical shapes
M series software in multiple languages
Specifications
Measuring Range (X,Y)
FOV mode
28 mm x 21 mm (35 mm diagonal)
with moving stage
200 mm x 100 mm
Maximum Component Height
with fixed stage
100 mm
with moving stage
68 mm
Measurement Uncertainty
FOV mode
4 µm
with moving stage
7+(9.54L/1000)µm
Optics
Telecentric lens
Image Sensor
5MP USB 3.0 camera
Weight
10 kg
Dimensions
with fixed stage
275 x 375 x 605 (max) mm
with moving stage
515 x 480 x 605 (max) mm
Applications
Options
Accessories
Standards
Media
